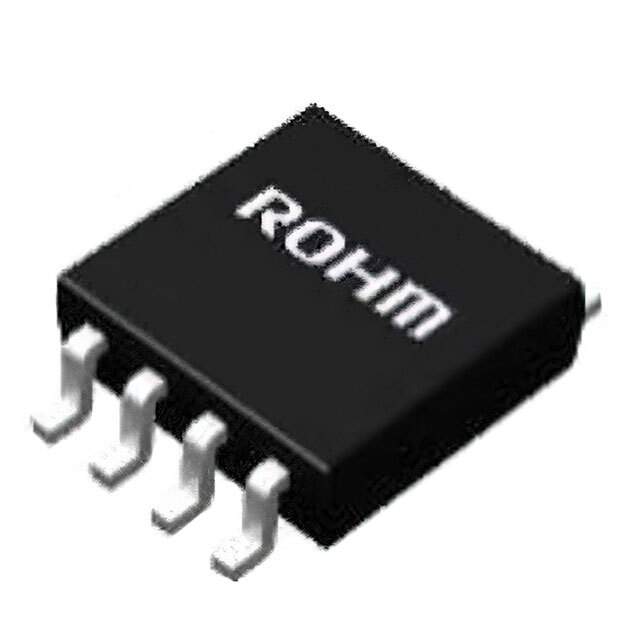

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Rohm Semiconductor
Series Automotive, AEC-Q100
Package Tape & Reel
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 64Kb (8K x 8)
Memory Interface I2C
Clock Frequency 1 MHz
Write Cycle Time - Word, Page 3.5ms
Voltage - Supply 1.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 8-VSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package 8-MSOP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.32.0051
Other Names 846-BR24H64FVM-5ACTR,846-BR24H64FVM-5ACDKR,846-BR24H64FVM-5ACCT
Standard Package 3,000
Win Source Part Number 971598-BR24H64FVM-5ACTR
Ultra Librarian 3D Model Ultra Librarian BR24H64FVM-5ACTR CAD Model

Description

The BR24H64FVM-5ACTR is a memory integrated circuit from Rohm Semiconductor.

  • Memory Type: Non-volatile EEPROM memory
  • Memory Size: 64Kb (8K x 8)
  • Voltage Supply: 1.7V to 5.5V
  • Clock Frequency: 1 MHz
  • Package: Tape and reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Package/Case: 8-VSSOP, 8-MSOP (0.110", 2.80mm Width)
  • Supplier Device Package: 8-MSOP
  • Operating Temperature Range: -40°C to 125°C (TA)
  • Write Cycle Time: 3.5ms
  • Memory Interface: I2C
