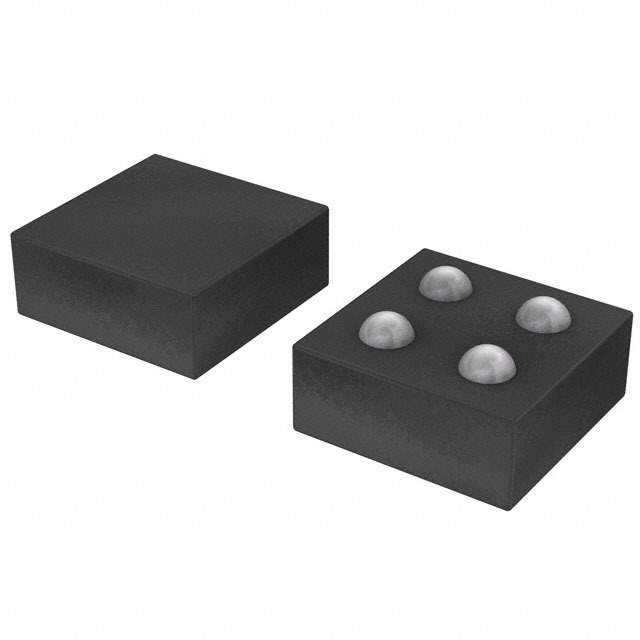

The BU52078GWZ-E2 is a Hall effect switch IC manufactured by Rohm Semiconductor. It is designed to detect magnetic fields and provide a digital output signal indicating the presence or absence of a magnetic field. This sensor is characterized by its high sensitivity, low power consumption, and compact size, making it suitable for a variety of applications.

Applications

• Open/close detection in portable devices
• Position detection in industrial equipment
• Rotation detection in motors and encoders
• Proximity sensing in consumer electronics
• Contactless switches in automotive applications

Features

• High sensitivity
• Low current consumption
• Wide operating voltage range
• Digital output
• Small package (WLCSP6)
• Omnipolar detection

Benefits

• Precise magnetic field detection: High sensitivity ensures accurate and reliable detection of magnetic fields.
• Extended battery life: Low current consumption minimizes power drain, extending the operational life of battery-powered devices.
• Versatile application: Wide operating voltage range allows for use in a variety of systems and environments.
• Compact design: Small WLCSP6 package enables integration into space-constrained applications.
• Simplified system design: Digital output simplifies interfacing with microcontrollers and other digital circuits.

Additional Details

The BU52078GWZ-E2 features an omnipolar detection capability, meaning it can detect magnetic fields from either pole (north or south). This eliminates the need for precise magnet alignment and simplifies the mechanical design. The digital output is a simple on/off signal that can be directly connected to a microcontroller or other digital input. The sensor's small size and low power consumption make it ideal for portable and battery-powered devices. The device incorporates built-in hysteresis to prevent output oscillation and improve stability. It is also designed to be robust against environmental factors such as temperature variations and electromagnetic interference. The BU52078GWZ-E2 provides a reliable and cost-effective solution for magnetic field sensing in a wide range of applications.

For optimal performance, a decoupling capacitor should be placed close to the power supply pin of the sensor. Refer to the datasheet for specific recommendations on capacitor values and layout guidelines.
