DTD743EMT2L

Part No DTD743EMT2L
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 150MW VMT3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Resistor - Base (R1) (Ohms) 4.7k
Resistor - Emitter Base (R2) (Ohms) 4.7k
Typical Gain (hFE) (Min) 115 @ 100mA, 2V
Max Vce (sat) 300mV @ 2.5mA, 50mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 260MHz
Maximum Power Dissipation 150mW
Mounting SMD (SMT)

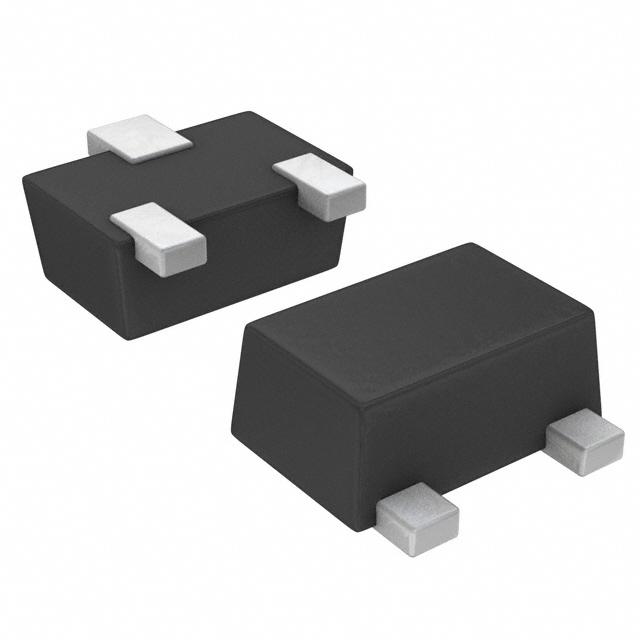

Case / Package VMT3
Win Source Part Number 015081-DTD743EMT2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DTD743EMT2L CAD Model

Description

Description

The DTD743EMT2L is a high-performance electronic component designed for efficient power management and signal processing. Its robust construction and advanced technology make it suitable for a variety of applications and projects.

Applications

  • Power Supply Modules
  • Signal Amplification Systems
  • Consumer Electronics
  • Automotive Electronics

Features and Benefits

  • High Efficiency: Delivers optimal performance with minimal energy loss.
  • Compact Design: Facilitates easy integration into various circuit configurations.
  • Reliable Operation: Ensures consistency and durability in demanding environments.
  • Wide Temperature Range: Operates effectively in both high and low temperature conditions.

Additional Details: The DTD743EMT2L is engineered with precision to meet stringent quality standards, ensuring reliability and longevity in all its applications.
