Same model may have multiple batches, images only for reference.

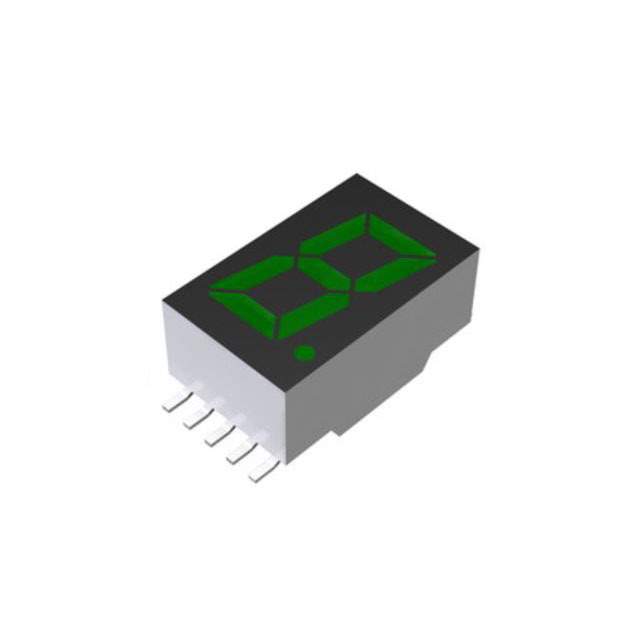

LF-3011MA Real Image
Same model may have multiple batches, images only for reference.

LF-3011MA

Part No LF-3011MA
Manufacturer Rohm Semiconductor
Catalog Display Modules - LED Character and Numeric
Description SINGLE DIGIT SURFACE MOUNT LED N
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Number of Characters 1
Dimension 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm)
Digit/Alpha Size 0.32" (8.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 10mA
Millicandela Rating 10mcd
Wavelength - Peak 563nm
Power Dissipation (Maximum) 480mW
Manufacturer Package 10-SMD, Gull Wing
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808917-LF-3011MA
Ultra Librarian 3D Model Ultra Librarian LF-3011MA CAD Model

Description

The 7-segment display, manufactured by Rohm Semiconductor, is a high-performance electronic component that is ideal for use in various applications.

  • Digit/Alpha Size: 0.32" (8.00mm)
  • Millicandela Rating: 10mcd
  • Voltage-Forward (Vf): 2.1V
  • Current-Test: 10mA
  • Wavelength-Peak: 563nm
  • Common Pin: Common Anode
  • Package: 10-SMD, Gull Wing
  • Mounting Type: Surface Mount
  • Power Dissipation (Maximum): 480mW
  • RoHS Compliant: Yes
