Same model may have multiple batches, images only for reference.

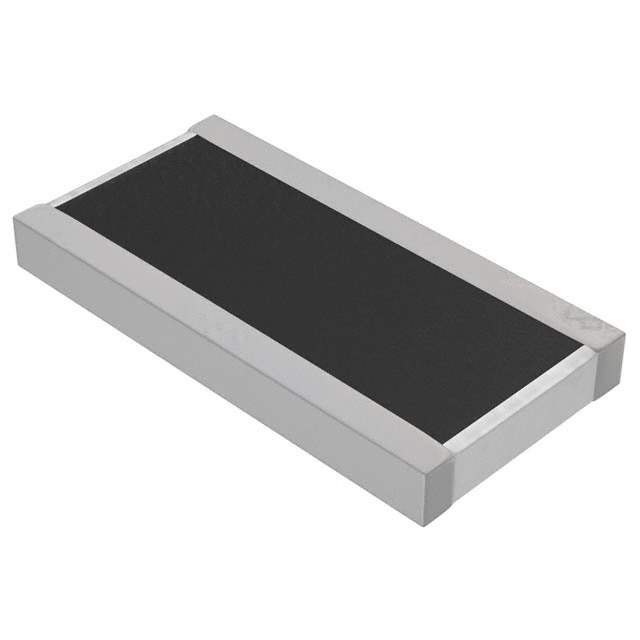

LTR50UZPJ821 Real Image
Same model may have multiple batches, images only for reference.

LTR50UZPJ821

Part No LTR50UZPJ821
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 1W 2010 WIDE / 820 Ohms ±5% 1W Chip Resistor Wide 2010 (5025 Metric), 1020 Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
LTR50UZPJ821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 820 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Wide 2010 (5025 Metric), 1020
Supplier Device Package 2010
Ratings AEC-Q200
Size / Dimension 0.098" L x 0.197" W (2.50mm x 5.00mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM820AACT,RHM820AATR,RHM820AADKR
Standard Package 5,000
Win Source Part Number 1326455-LTR50UZPJ821
Ultra Librarian 3D Model Ultra Librarian LTR50UZPJ821 CAD Model

Description

The LTR50UZPJ821 from Rohm Semiconductor is a chip resistor - surface mount electronic component.

  • Resistance: 820 Ohms
  • Tolerance: ±5%
  • Composition: Thick film
  • Power (watts): 1W
  • Package: 2010 (5025 Metric), 1020
  • Win Source Part Number: 1326455-LTR50UZPJ821
  • Rated: Automotive AEC-Q200 and pulse withstanding
  • Temperature Range: -55°C ~ 155°C
