Same model may have multiple batches, images only for reference.

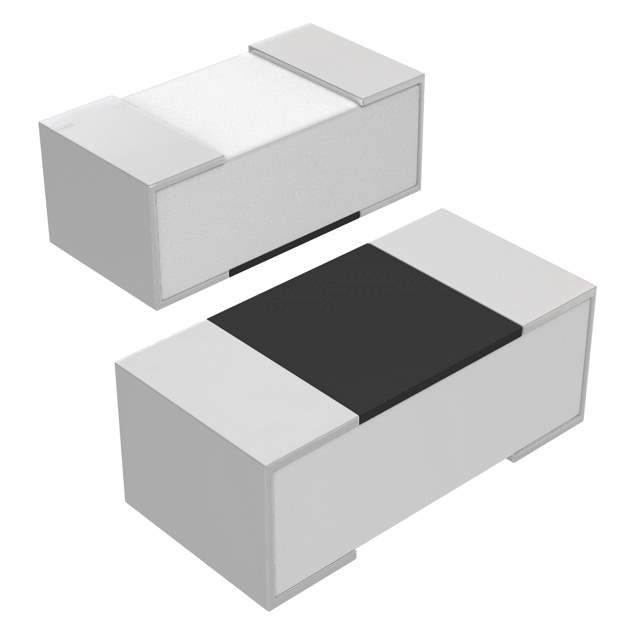

MCR006YZPF1005 Real Image
Same model may have multiple batches, images only for reference.

MCR006YZPF1005

Part No MCR006YZPF1005
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 10M OHM 1% 1/20W 0201 / 10 MOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
Datasheet
MCR006YZPF1005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 10 mOhms
Tolerance ±1%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0201 (0603 Metric)
Supplier Device Package 0201
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM10MABTR,RHM1685-TR-ND,Q5899685AAAA,RHM10MABDKR,RHM10MABCT
Standard Package 15,000
Win Source Part Number 1326184-MCR006YZPF1005
Ultra Librarian 3D Model Ultra Librarian MCR006YZPF1005 CAD Model

Description

The MCR006YZPF1005 is a chip resistor manufactured by Rohm Semiconductor.

  • Resistance: 10 mOhms
  • Power Rating: 0.05 W
  • Tolerance: ±1%
  • Temperature Coefficient: ±250ppm/°C
  • Package: 0201
  • Operating Temperature: -55°C ~ 125°C
  • Application: Chip resistor surface mount applications
  • REACH: Unaffected
  • ROHS3: Compliant
