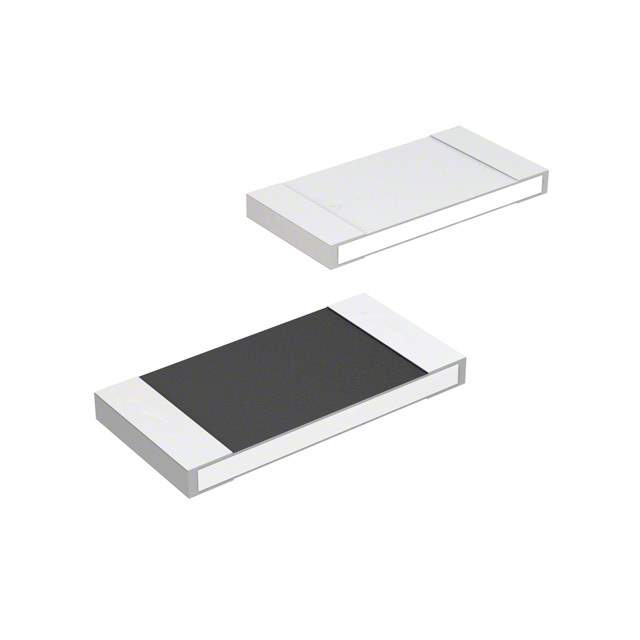

The MCR03EZHF2003 is a thick film chip resistor from Rohm Semiconductor's MCR series. This resistor is designed for general-purpose applications and offers excellent stability and reliability in a compact 0603 package. It provides a precise resistance of 200kΩ with a tolerance of ±1% and a temperature coefficient of ±100 ppm/°C. It's well-suited for a variety of electronic circuits requiring stable and accurate resistance values.

Applications:

• General-purpose circuit design: Used in a wide array of electronic devices for current limiting, voltage division, and pull-up/pull-down resistor applications.
• Consumer electronics: Employed in devices such as smartphones, tablets, and audio equipment.
• Industrial equipment: Suitable for use in various industrial control systems and measurement instruments.
• Automotive electronics: Found in automotive control units and sensor circuits.
• Power supplies: Used for feedback and current sensing in power supplies.

Features:

• High stability: Provides consistent performance across a range of operating conditions.
• Precise resistance: Offers a tight tolerance of ±1%.
• Compact size: The 0603 package allows for high-density circuit design.
• Thick film technology: Ensures robust construction and long-term reliability.
• RoHS compliant: Environmentally friendly and compliant with RoHS standards.

Benefits:

• Improved circuit performance: The precise resistance and stability contribute to accurate circuit operation.
• Reduced component count: The small size enables more compact and efficient circuit designs.
• Enhanced reliability: The thick film technology provides long-term stability and durability.
• Cost-effective solution: Offers a balance of performance and affordability.
• Ease of use: The 0603 package is compatible with standard SMT assembly processes.

Additional Details:

The MCR03EZHF2003 has a power rating of 0.1W and a maximum operating voltage of 75V. It is designed to operate within a temperature range of -55°C to +155°C. The resistor is constructed using a high-quality ceramic substrate and a resistive thick film element, ensuring excellent electrical performance and mechanical strength. The termination finish is typically matte tin, providing good solderability. The 0603 package has dimensions of 1.6mm x 0.8mm x 0.45mm.
