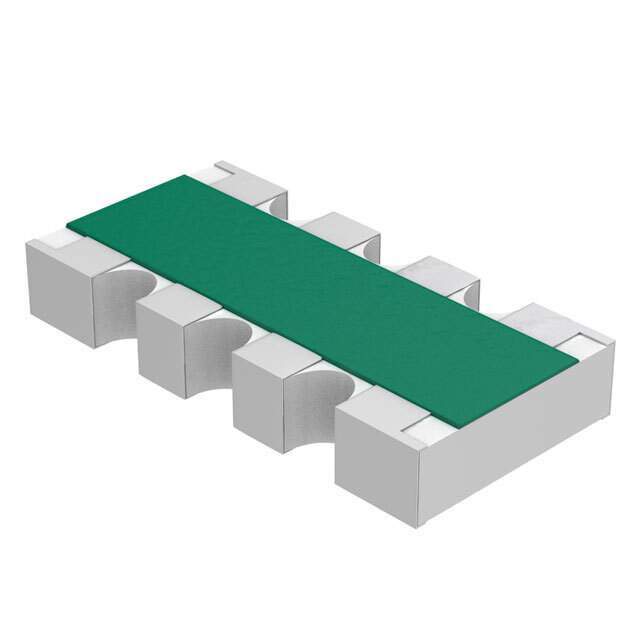

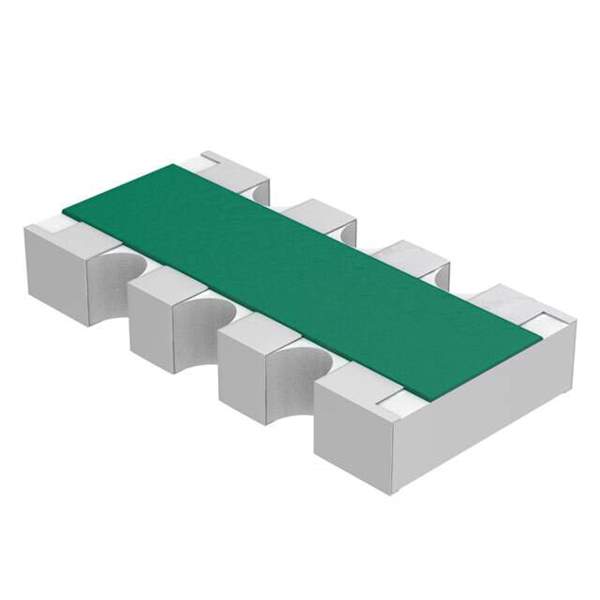

MNR14E0ABJ472 Real Image
Same model may have multiple batches, images only for reference.

MNR14E0ABJ472

Part No MNR14E0ABJ472
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 4.7K OHM 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Circuit Type Isolated
Resistance (Ohms) 4.7k
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 1206 (3216 Metric), Convex, Long Side Terminals
Dimension 0.126" L x 0.063" W
Height - Seated (Maximum) 0.024" (0.60mm)
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804909-MNR14E0ABJ472
Ultra Librarian 3D Model Ultra Librarian MNR14E0ABJ472 CAD Model

Description

The Rohm Semiconductor MNR14E0ABJ472 model from Rohm Semiconductor is a resistor circuit type with isolated features.

  • Packaging: Reel
  • Mounting Style: SMD
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistors: Four
  • Pins: Eight
  • Power per Element: 62.5mW
  • Dimension: 0.126 inches L x 0.063 inches W
  • Height Seated Maximum: 0.024 inches (0.60mm)
  • Manufacturer Package: 1206 (3216 Metric), convex, long side terminals
  • Manufacturer Pack Quantity: 5,000
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (Unlimited)
  • Resistor Matching Ratio: -
  • Resistor-ratio-drift: -
