Products specifications

RoHS State Request Verification
Manufacturer Rohm Semiconductor
Win Source Part Number 1241896-RB450F
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB450F CAD Model

Description

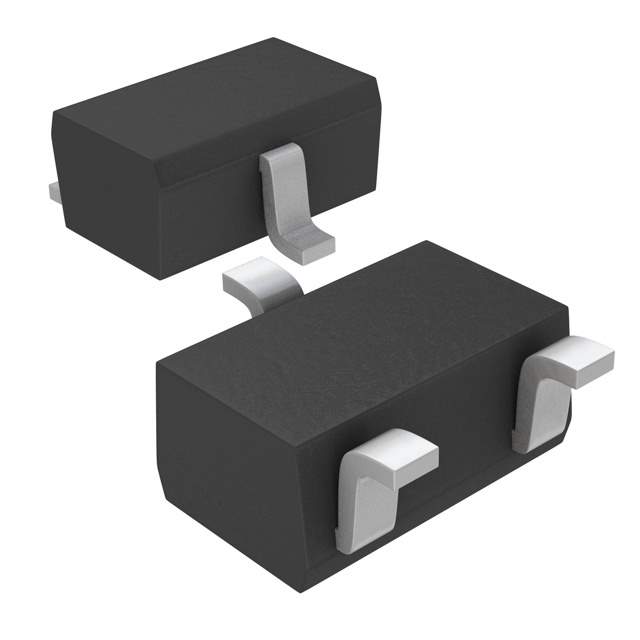

The RB450F is a Schottky barrier diode manufactured by Rohm Semiconductor. It is designed for high-speed switching applications and features a low forward voltage drop, making it suitable for use in circuits where efficiency is crucial.

Applications

  • High-speed switching circuits
  • DC-DC converters
  • Reverse polarity protection
  • Freewheeling diodes in inductive loads
  • Clamping circuits

Features

  • Low Forward Voltage Drop: Minimizes power loss and improves circuit efficiency.
  • High-Speed Switching: Enables fast response times in switching applications.
  • Compact Package: Available in a small surface-mount package for space-saving designs.
  • High Surge Current Capability: Provides robustness against transient voltage spikes.
  • Low Leakage Current: Reduces power consumption in standby mode.

Benefits

  • Improved Efficiency: The low forward voltage drop contributes to higher overall circuit efficiency, reducing heat generation and power consumption.
  • Faster Switching Speeds: Enables quicker response times in switching applications, leading to improved performance.
  • Space-Saving Design: The compact surface-mount package allows for smaller and more densely populated circuit boards.
  • Enhanced Reliability: High surge current capability ensures reliable operation under transient conditions.
  • Reduced Power Consumption: Low leakage current minimizes power consumption when the diode is in the off state.

Additional Details

The RB450F typically comes in a small surface-mount package such as a SOD-323. Key specifications include a forward voltage drop of around 0.35V at a forward current of 100mA, a maximum repetitive peak reverse voltage of 40V, and a maximum average forward current of 300mA. Its low capacitance also contributes to its high-speed switching characteristics. It is commonly used in portable devices, power supplies, and various electronic circuits where efficient and fast switching is required.
