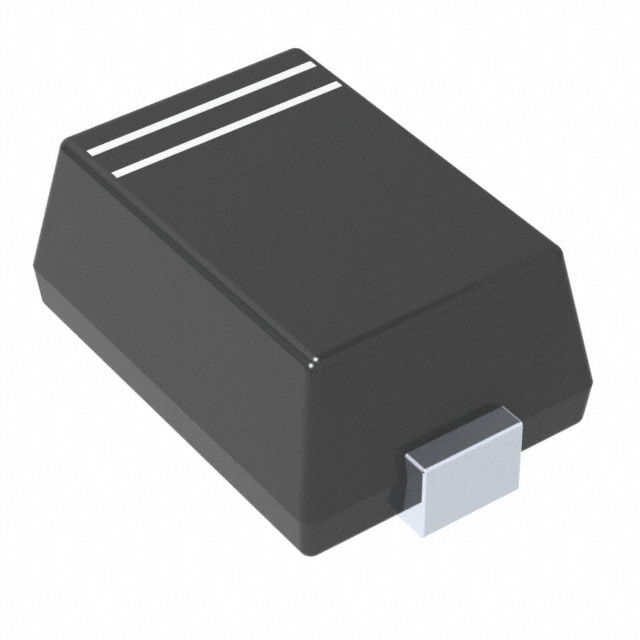

Same model may have multiple batches, images only for reference.
RB520CM-60T2R
Same model may have multiple batches, images only for reference.

RB520CM-60T2R

Part No RB520CM-60T2R
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 100MA VMN2M
Datasheet
RB520CM-60T2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 19 Weeks
Features Diode Schottky 60 V 100mA Surface Mount VMN2M
Manufacturer Rohm Semiconductor
Series Automotive, AEC-Q101
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 2-SMD, Flat Lead
Case / Package VMN2M
Family Name RB520
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number RB520CM-60T2RTR, RB520CM-60T2RCT, RB520CM-60T2RDKR
Quantity per package 8000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891232-RB520CM-60T2R
Ultra Librarian 3D Model Ultra Librarian RB520CM-60T2R CAD Model

Description

The Rohm Semiconductor RB520CM-60T2R is a diode Schottky with a fast recovery time of less than 500ns and a current rating of more than 200mA.

  • Recovery Time: less than 500ns
  • Current Rating: more than 200mA
  • Mounting: surface mount
  • Maximum Voltage Rating: 60V
  • Series: RB520
  • Applications: automotive applications
  • Compliance: AEC-Q101
  • Package: 2-SMD with flat leads
  • Supplied on: reel
  • Popularity: high quality and reliability
  • Supply: limited supply
  • Quantity per Package: 8000
  • Estimated Production Lead Time: 19 weeks
  • REACH: unaffected
  • ECCN: EAR99
