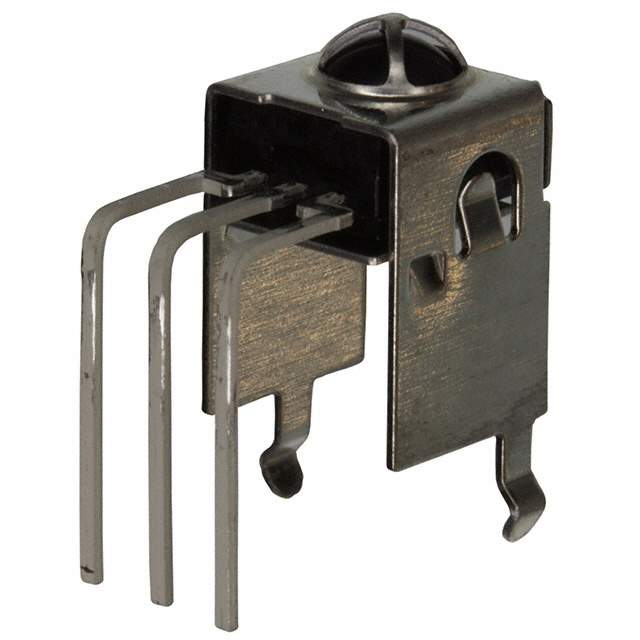

The RPM7237-H9 is an infrared remote control receiver module manufactured by Rohm Semiconductor. This module is designed to receive infrared signals transmitted from a remote control and convert them into electrical signals that can be processed by a microcontroller or other control circuitry. It's commonly used in consumer electronics to enable wireless control of devices.

Applications

• Televisions: Receives infrared signals for controlling power, volume, channel selection, and other functions.
• DVD Players and Blu-ray Players: Used for remote control of playback functions such as play, pause, stop, skip, and menu navigation.
• Audio Systems: Allows remote control of volume, source selection, and playback functions in stereos and amplifiers.
• Set-Top Boxes: Enables remote navigation of menus, channel selection, and access to on-demand content.
• Air Conditioners: Used for remote control of temperature, fan speed, and operating modes.

Features

• Compact Size: Space-saving design allows for easy integration into various electronic devices.
• High Sensitivity: Ensures reliable reception of remote control signals, even at a distance.
• Low Current Consumption: Energy-efficient operation is suitable for battery-powered applications.
• Internal Filter: Reduces the impact of unwanted noise and interference on signal reception.
• Automatic Gain Control (AGC): Stabilizes the output signal even with variations in signal strength.

Benefits

• Simplified Integration: Easy to incorporate remote control functionality into electronic devices.
• Enhanced Reliability: Robust design ensures consistent and dependable performance.
• Reduced Power Consumption: Extends battery life in portable devices and reduces energy usage.
• Improved Noise Immunity: Minimizes the effects of external interference on signal reception.
• Stable Output Signal: Provides reliable data for decoding and processing remote control commands.

Additional Details

The RPM7237-H9 typically operates on a 5V power supply. It is designed to receive infrared signals modulated at a specific carrier frequency, commonly around 37.9 kHz. The output signal is a digital signal that corresponds to the decoded remote control commands. An external pull-up resistor is usually required on the output pin. The operating temperature range is typically between -25°C and +85°C. The AGC (Automatic Gain Control) function automatically adjusts the gain to compensate for variations in the strength of the received signal, maintaining a consistent output signal level.
