The Rohm Semiconductor 027477-RRR030P03TL is a P-Channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 3A (Ta).

• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 3A (Ta)
• Maximum Rds On: 75 mOhm @ 3A, 10V
• Gate-Source Threshold Voltage: 2.5V @ 1mA
• Maximum Gate-Source Voltage: ±20V
• Maximum Gate Charge: 5.2nC @ 5V

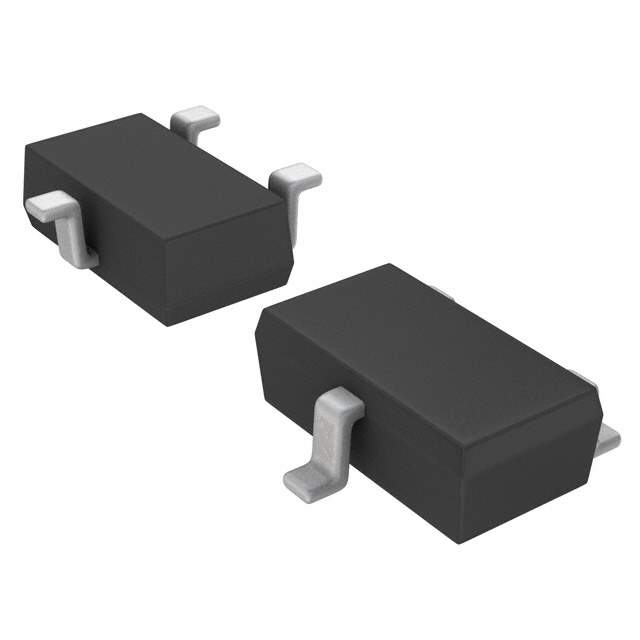

• Package: TSMT3 case (SC-96)
• Power Dissipation: 1W (Ta)
• Drive Voltage: 4V, 10V (Max Rds On, Min Rds On)
• Operating Temperature Range: 150°C (TJ)
• Supply and Demand: Balanced
