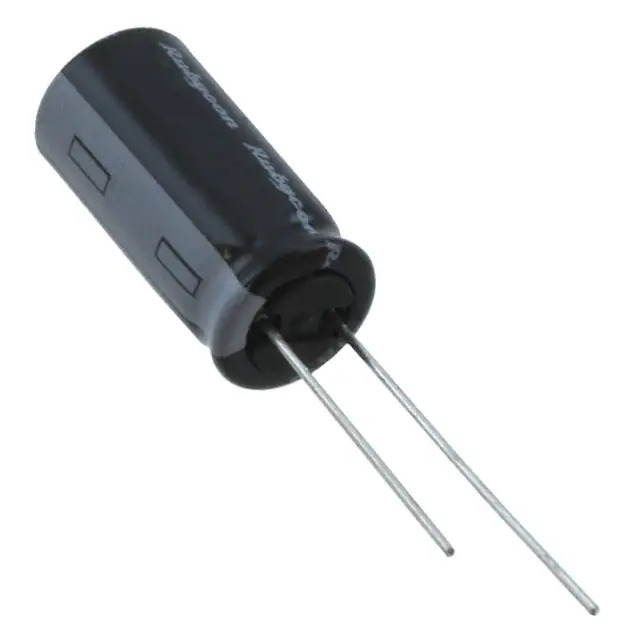

16PX2200MEFC10X20 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.05 A @ 120 Hz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357904-16PX2200MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 16PX2200MEFC10X20 CAD Model

Description

The Rubycon 1357904-16PX2200MEFC10X20 is a bulk packaged aluminum electrolytic capacitor. 1357904-16PX2200MEFC10X20 from Rubycon.

  • Series: PX
  • Application: General Purpose
  • Capacitance: 2200 µF
  • Voltage Rating: 16 V
  • Temperature Range: -55°C to 105°C
  • Tolerance: ±20%
  • Lead Spacing: 5.00mm
  • Diameter: 10.00mm
  • Seated Height: 21.50mm
  • Ripple Current: 1.05 A @ 120 Hz
  • Lifetime: 2000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
