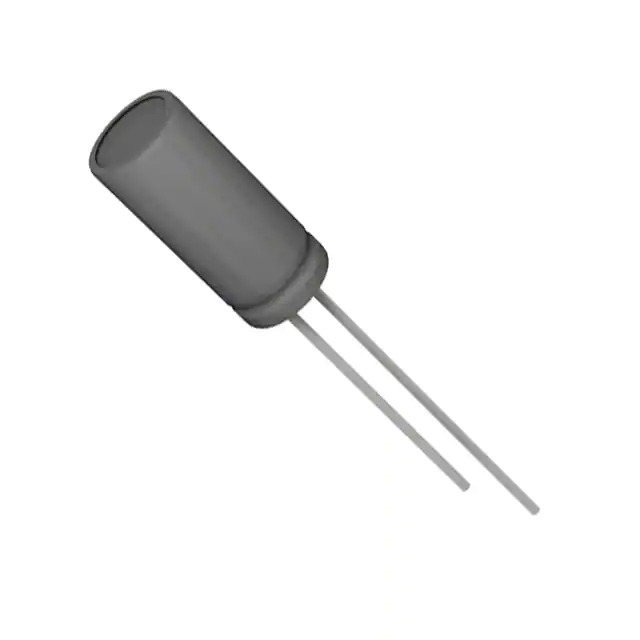

25TWL10MEFC5X11 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TWL
Package Bulk
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 50 mA @ 120 Hz
Ripple Current @ High Frequency 75 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357620-25TWL10MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 25TWL10MEFC5X11 CAD Model

Description

The TWL series aluminum electrolytic capacitor is a reliable component suitable for general-purpose applications and is manufactured by Rubycon.

  • Capacitance: 10 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 50 mA @ 120 Hz
  • Ripple Current @ High Frequency: 75 mA @ 10 kHz
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.079" (2.00mm)
  • Size / Dimension: 0.197" (5.00mm) Diameter
  • Height - Seated (Max): 0.492" (12.50mm)
  • Series: TWL
  • REACH Status: Unaffected
  • ECCN: EAR99
