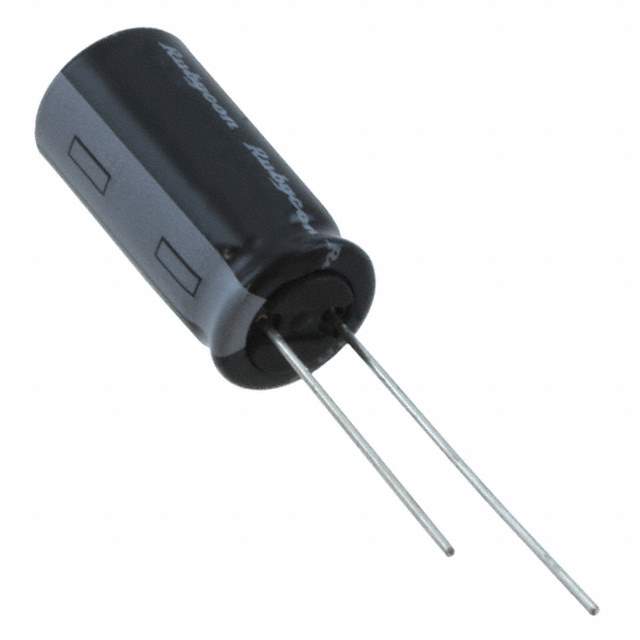

35PX680MEFC10X16 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 760 mA @ 120 Hz
Ripple Current @ High Frequency 912 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 1189-1282
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307298-35PX680MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 35PX680MEFC10X16 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 680 µF and a voltage rating of 35 V.

  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 2000 hours @ 105°C
  • Polarized: Yes
  • Ripple Current @ Low Frequency: 760 mA @ 120 Hz
  • Ripple Current @ High Frequency: 912 mA @ 10 kHz
  • Package: Radial, can package
  • Mounting: Through hole
  • Diameter: 0.394" (10.00mm)
  • Height: 0.689" (17.50mm)
  • Application: General-purpose
