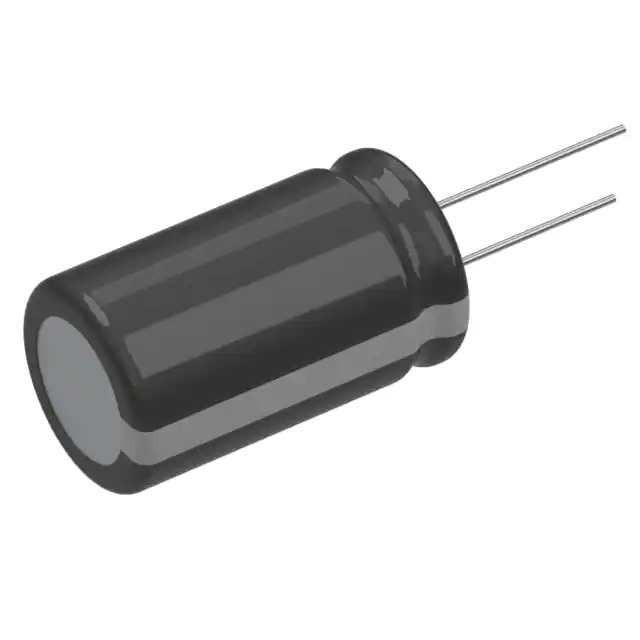

420CXW100MEFR16X31.5 Rubycon
Same model may have multiple batches, images only for reference.

420CXW100MEFR16X31.5

Part No 420CXW100MEFR16X31.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 420V RADIAL / 100 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series CXW
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 420 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 690 mA @ 120 Hz
Ripple Current @ High Frequency 1.035 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.319" (33.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357731-420CXW100MEFR16X31.5
Ultra Librarian 3D Model Ultra Librarian 420CXW100MEFR16X31.5 CAD Model

Description

The 420CXW100MEFR16X31.5 is a radial aluminum electrolytic capacitor from Rubycon's CXW series.

  • Capacitance: 100μF
  • Voltage Rating: 420V
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current (Low Frequency): 690mA @ 120Hz
  • Ripple Current (High Frequency): 1.035A @ 10kHz
  • Polarization: Polarized
  • Lead Spacing: 7.50mm
