Products specifications

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Obsolete
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1 A @ 120 Hz
Ripple Current @ High Frequency 2.25 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 450BXW150MEFCEFR18X45,1189-1353
Standard Package 200
Win Source Part Number 1224173-450BXW150MEFC18X45
Ultra Librarian 3D Model Ultra Librarian 450BXW150MEFC18X45 CAD Model

Description

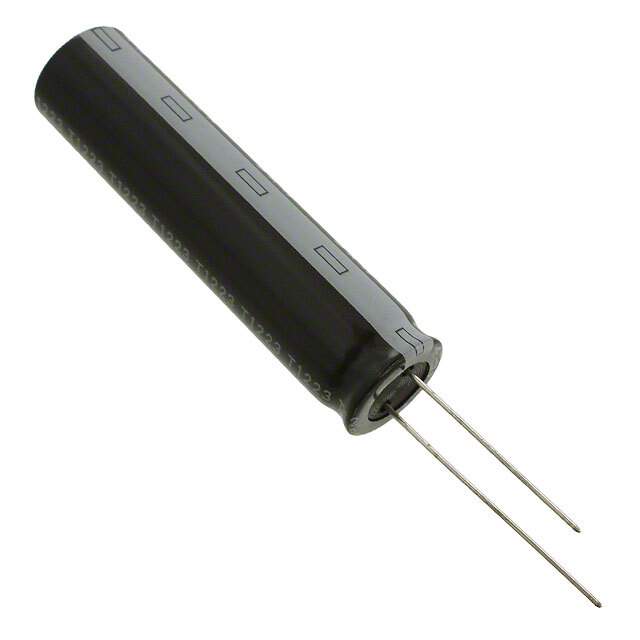

The Rubycon 450BXW150MEFC18X45 is an aluminum electrolytic capacitor with a capacitance of 150 µF and a rated voltage of 450 V.

  • Capacitance: 150 µF
  • Rated Voltage: 450 V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Height Seated (Max): 1.850" (47.00mm)
  • Ripple Current (Low Frequency): 1 A @ 120 Hz
  • Ripple Current (High Frequency): 2.25 A @ 100 kHz
