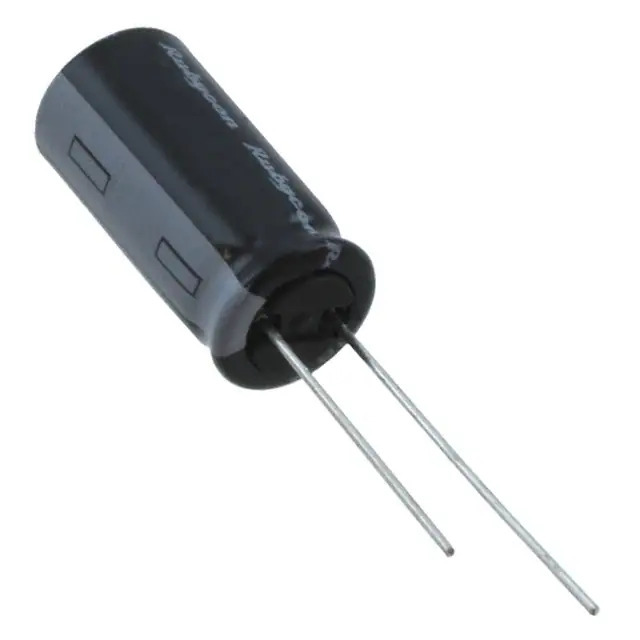

63PX330MEFC10X20 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 540 mA @ 120 Hz
Ripple Current @ High Frequency 648 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357708-63PX330MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 63PX330MEFC10X20 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a high-quality component for various electronic applications from Rubycon.

  • Capacitance: 330 µF
  • Voltage Rating: 63 V
  • Temperature Range: -55°C to 105°C
  • Mounting Type: through-hole
  • Package: radial, can
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" Dia (10.00mm)
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 540 mA @ 120 Hz
  • Ripple Current (High Frequency): 648 mA @ 10 kHz
  • Product Status: active
