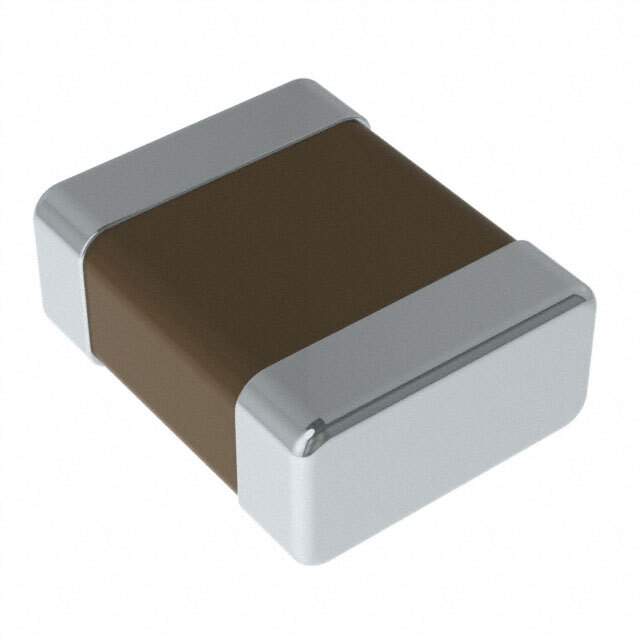

CIG22H1R2MNE

Get a Quote

Part No	CIG22H1R2MNE
Manufacturer	Samsung
Catalog	Fixed Inductors
Description	FIXED IND 1.2UH 1.5A 94 MOHM SMD / 1.2 µH Shielded Multilayer Inductor 1.5 A 94mOhm 1008 (2520 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Samsung Electro-Mechanics
Series	CIG22H
Package	Tape & Reel
Product Status	Obsolete
Type	Multilayer
Inductance	1.2 µH
Tolerance	±20%
Current Rating (Amps)	1.5 A
Current - Saturation (Isat)	2.8A
Shielding	Shielded
DC Resistance (DCR)	94mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	CIG22H1R2MNE-ND,1276-6880-2,1276-6880-1,1276-6880-6
Standard Package	2,500
Win Source Part Number	958051-CIG22H1R2MNE
Ultra Librarian 3D Model	Ultra Librarian CIG22H1R2MNE CAD Model

Alternative Products

Description

The Samsung Electro-Mechanics CIG22H1R2MNE is a multilayer fixed inductor with a shielding feature.

Inductance: 1.2 µH
Tolerance: ±20%
Height, when seated: 0.039" (1.00mm)
DC Resistance (DCR): 94mOhm
Current Rating: 1.5A
Package/Case: 1008 (2520 Metric)
Supplier Device Package: 1008 (2520 Metric)
Operating Temperature Range: -40°C ~ 125°C
Product Status: Obsolete
Alternative Parts: LQH32MN1R2M23L, LK16081R2M-T, MLF2012A1R2MT000, LK21251R2M-T, MLF1608A1R2MTA00, and LK10051R2M-T
