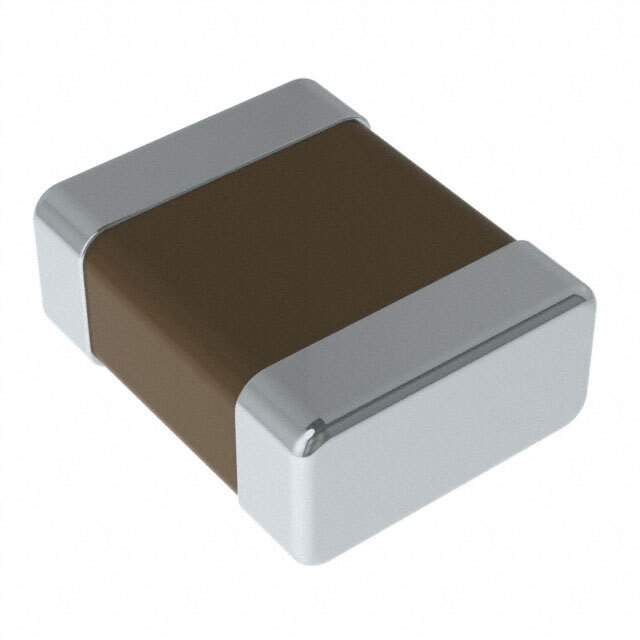

CIG22L4R7MNE Real Image
Same model may have multiple batches, images only for reference.

CIG22L4R7MNE

Part No CIG22L4R7MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 1.1A 0.11Ohm DCR 1008 T/R / FIXED IND 4.7UH 1.1A 110 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Samsung Electro-Mechanics America, Inc.
Packaging Reel - TR
Status Active
Type Multilayer
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.1A
DC Resistance (DCR) 110 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Win Source Part Number 013117-CIG22L4R7MNE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CIG
Introduction Date July 27, 2010
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CIG22L4R7MNE CAD Model

Description

Product Overview

The CIG22L4R7MNE is a high-performance inductor designed for use in a variety of applications where efficiency and reliability are paramount. Known for its excellent inductance stability, this component is ideal for modern electronic devices that demand precision and durability.

Features and Benefits

  • High inductance stability for consistent performance.
  • Compact design suitable for space-constrained applications.
  • Low core loss to ensure energy efficiency.
  • Robust construction for enhanced durability.

Applications

  • Power management systems
  • DC-DC converters
  • Telecommunications equipment
  • Consumer electronics

The CIG22L4R7MNE's compact design makes it perfect for integration into various projects where space is limited yet performance cannot be compromised.
