Same model may have multiple batches, images only for reference.

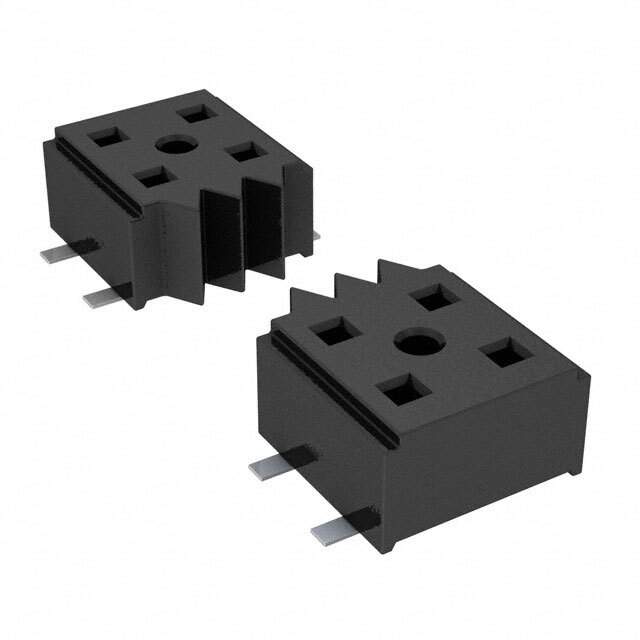

CLT-147-02-L-D-A Real Image
Same model may have multiple batches, images only for reference.

CLT-147-02-L-D-A

Part No CLT-147-02-L-D-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 94POS 0.079 GOLD SMD  /  94 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
CLT-147-02-L-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 94
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-147
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 6
Win Source Part Number 1020224-CLT-147-02-L-D-A
Ultra Librarian 3D Model Ultra Librarian CLT-147-02-L-D-A CAD Model

Description

The Samtec Inc. 1020224-CLT-147-02-L-D-A connector, which is a receptacle type connector with a push-pull fastening feature.

  • Positions: 94
  • Rows: Two
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating Side): Gold
  • Contact Finish (Post Side): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Pitch: 2.00mm
  • Contact Length Post: 0.079"
  • Row Spacing: 0.079"
  • Voltage Rating: Not Specified
  • Material Flammability Rating: UL94 V-0
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Standard Package: 6
