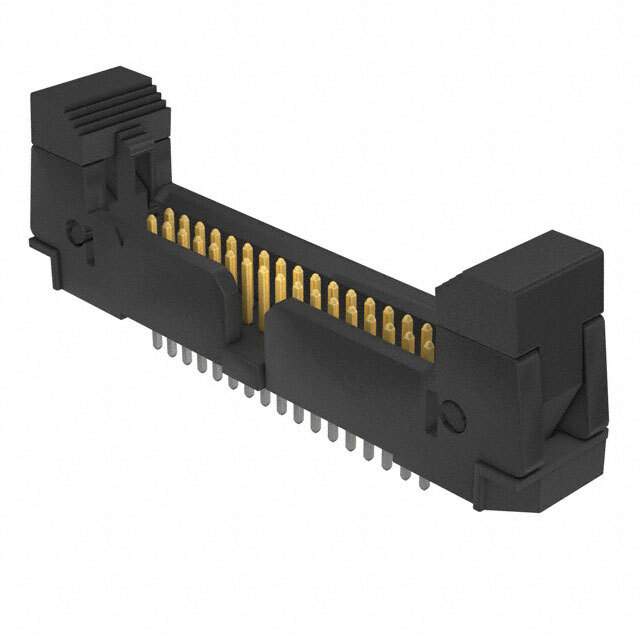

EHF-117-01-L-D Real Image
Same model may have multiple batches, images only for reference.

EHF-117-01-L-D

Part No EHF-117-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 34POS 1.27MM
Datasheet
EHF-117-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Connector Header Through Hole 34 position 0.050" (1.27mm)
Manufacturer Samtec Inc.
Series EHF
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name EHF-117
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM10431, Q5329343A, EHF-117-01-L-D-ND
Quantity per package 15
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870272-EHF-117-01-L-D
Ultra Librarian 3D Model Ultra Librarian EHF-117-01-L-D CAD Model

Description

The Samtec Inc. EHF-117-01-L-D is a connector header that is designed to provide secure and stable connection.

  • Positions: 34
  • Pitch: 0.050" (1.27mm)
  • Supply and Demand Status: limited
