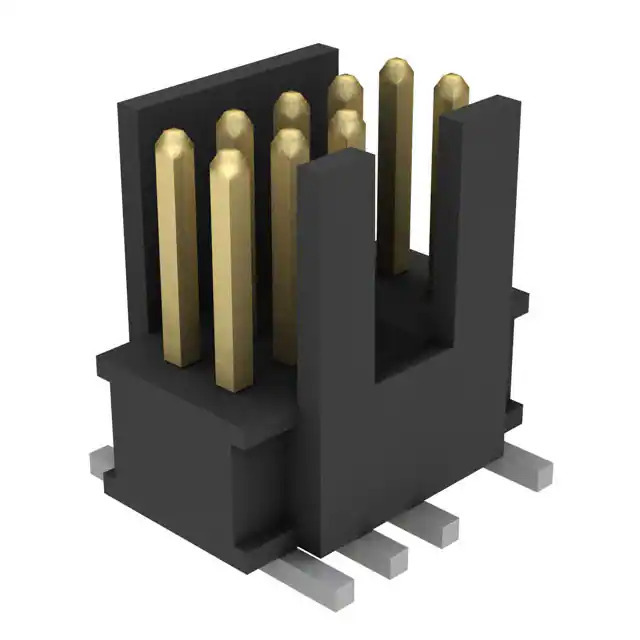

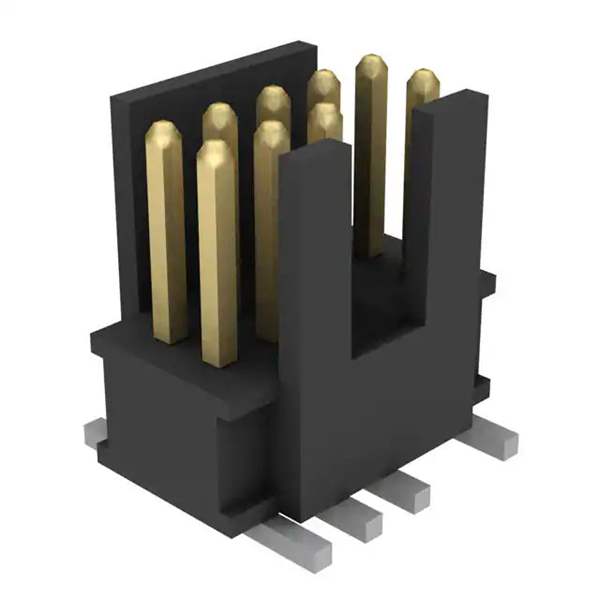

The Samtec Inc. FTSH-105-01-L-DV-007-K-TR is a male pin header connector from the FTSH series.

• Connector Type: Header, Male Pins
• Style: Board to Board or Cable
• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 10
• Mounting Type: Surface Mount
• Fastening Type: Push-Pull
• Features: Keying Shroud
• Contact Material: Phosphor Bronze
• Contact Finish - Mating: Gold
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Flammability Rating: UL94 V-0
• Operating Temperature: -55°C ~ 125°C
• Current Rating (Per Contact): 3.4A
• Status: Active
