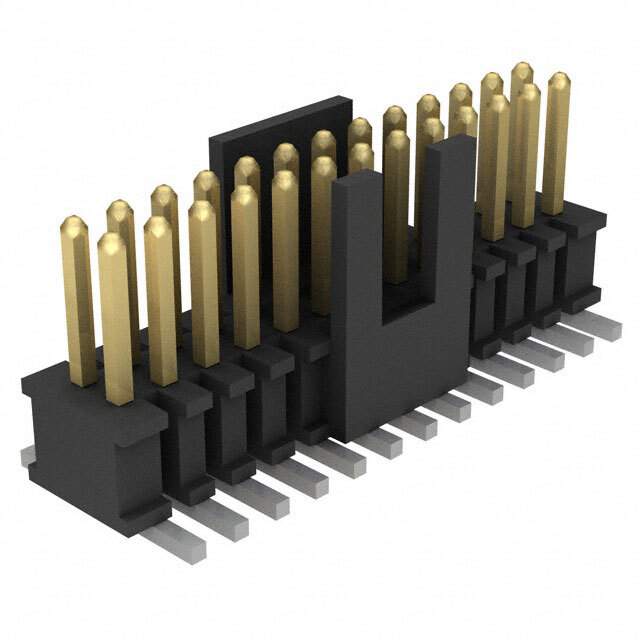

The FTSH-113-01-L-DV-K-P-TR is a high-density, surface mount header from Samtec Inc., part of their FTSH series (Flex Row, Through-hole, Shielded Header). This connector is designed for board-to-board connections in a variety of electronic applications, providing a reliable and space-saving interconnect solution. The 'TR' at the end indicates that it is provided in tape and reel packaging for automated assembly.

Applications

• Board-to-board connections in industrial equipment
• Medical devices requiring high-density interconnects
• Telecommunications equipment
• Data acquisition systems
• Embedded systems

Features

• High pin count (26 pins): Allows for a large number of signals to be transmitted.
• Surface mount design: Enables automated assembly and reflow soldering.
• Dual-row configuration: Maximizes pin density.
• Keyed polarization: Prevents mis-mating.
• Tape and reel packaging: Facilitates automated placement.

Benefits

• Space saving: High density design minimizes board space requirements.
• Reliable connection: Ensures consistent signal transmission.
• Simplified assembly: Surface mount design streamlines manufacturing.
• Prevents errors: Keyed polarization eliminates mis-mating.
• Cost-effective: Automated assembly reduces labor costs.

Additional Details

The FTSH-113-01-L-DV-K-P-TR features 26 pins arranged in a dual-row configuration (13 pins per row). The 'L' in the part number indicates a lead style, but specifics aren't available without the datasheet. The 'DV' signifies a double row vertical orientation. The 'K' indicates a keyed feature for polarization. 'P' specifies that it's made from plastic. The connector is made from a high-temperature thermoplastic material suitable for reflow soldering processes. The contact material is typically a beryllium copper alloy with gold plating to ensure good conductivity and corrosion resistance. The pitch is 1.27mm. The voltage rating is application dependent but typically around 350V. The current rating is also application-dependent and is defined in the datasheet. The operating temperature ranges from -55°C to +125°C. The mating connector is typically an FFSD series IDC cable assembly from Samtec.
