Same model may have multiple batches, images only for reference.

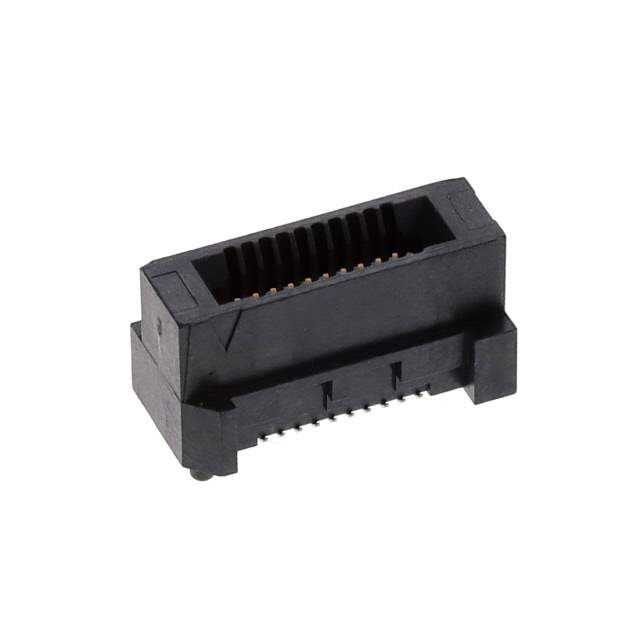

HSEC8-110-01-S-DV-A-PE-K-TR Real Image
Same model may have multiple batches, images only for reference.

HSEC8-110-01-S-DV-A-PE-K-TR

Part No HSEC8-110-01-S-DV-A-PE-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.031
Datasheet
HSEC8-110-01-S-DV-A-PE-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Manufacturer Samtec Inc.
Series Edge Rate™ HSEC8
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Family Name HSEC8-110
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number HSEC8-110-01-S-DV-A-PE-K-TR-ND, 612-HSEC8-110-01-S-DV-A-PE-K-TR, 612-HSEC8-110-01-S-DV-A-PE-K-TRCT
Quantity per package 350
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873916-HSEC8-110-01-S-DV-A-PE-K-TR
Ultra Librarian 3D Model Ultra Librarian HSEC8-110-01-S-DV-A-PE-K-TR CAD Model

Description

The HSEC8-110-01-S-DV-A-PE-K-TR from Samtec Inc. is an edge rate™ HSEC8 connector.

  • Type: 20 position female connector
  • Specification: Non-specified
  • Contact Plating: Dual edge gold 0.031" (0.80mm) black
  • Package: Reel-TR
  • Quantity per Package: 350
  • Series: HSEC8-110
  • Operating Temperature Range: -55°C ~ 125°C
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 8 weeks
  • HTSUS: 8536.69.4040
