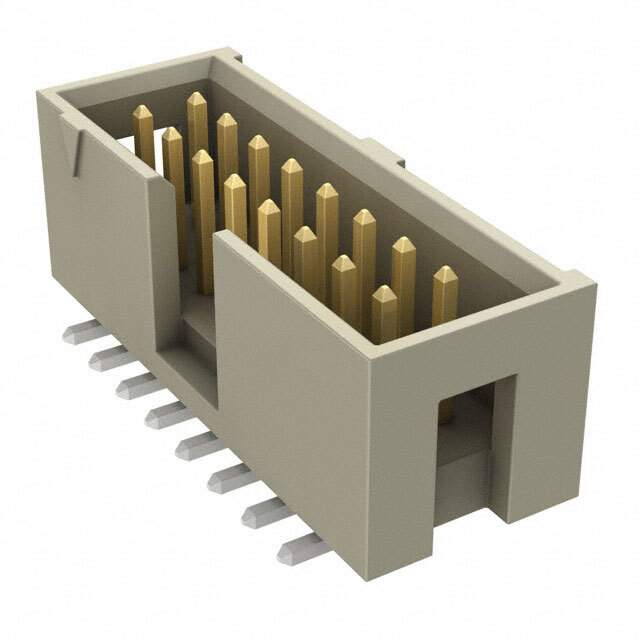

The HTST-108-01-L-DV-P-FR is a surface mount header manufactured by Samtec Inc. It is part of their High-Temp Tiger Strip® series, designed for high-density, high-temperature applications. This header provides a reliable board-to-board connection.

Applications:

• Board-to-board connections in high-density electronic assemblies
• Applications requiring high-temperature resistance
• Telecommunications equipment
• Industrial control systems
• Medical devices

Features:

• High-Temp Tiger Strip® design
• Surface mount termination
• Dual row configuration
• 8 positions per row (16 total positions)
• Gold plating for enhanced conductivity and durability
• High-temperature resistant materials

Benefits:

• Reliable Connection: Provides a secure and dependable board-to-board connection.
• High-Density: Allows for dense packaging of electronic components.
• High-Temperature Performance: Suitable for applications with elevated operating temperatures.
• Durable: Gold plating ensures long-term reliability and corrosion resistance.

Additional Details:

The HTST-108-01-L-DV-P-FR features a pitch (center-to-center spacing between pins) of 0.050 inches (1.27 mm). The “-L” in the part number indicates a low-profile design. The “-DV” signifies a dual-row vertical configuration. The “-P” indicates a pick-and-place pad for automated assembly, and the “-FR” denotes a full reel packaging for automated assembly processes. The gold plating provides excellent electrical contact and resistance to oxidation. Consult the Samtec datasheet for detailed mechanical dimensions, electrical characteristics, and material specifications. The high-temperature materials used in its construction allow for reliable operation in harsh environments and during reflow soldering processes.
