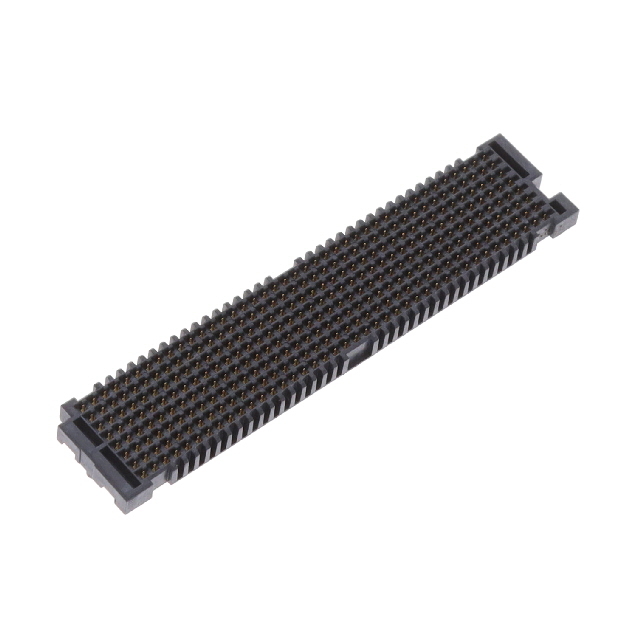

Same model may have multiple batches, images only for reference.
LSHM-150-01-L-RH-A-S-K-TR Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LSHM-150-01-L-RH-A-S-K-TR

Part No LSHM-150-01-L-RH-A-S-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN SELF-MATE 100P R/A SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 100
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount, Right Angle, Reverse
Features Board Guide, Pick and Place, Shielded
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.202\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1508662-LSHM-150-01-L-RH-A-S-K-TR
Ultra Librarian 3D Model Ultra Librarian LSHM-150-01-L-RH-A-S-K-TR CAD Model

Description

N
