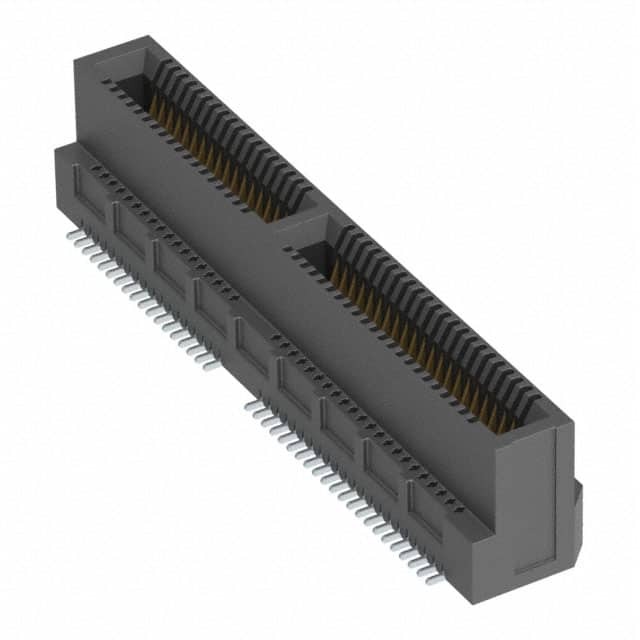

MEC8-140-02-L-DV
Same model may have multiple batches, images only for reference.

MEC8-140-02-L-DV

Part No MEC8-140-02-L-DV
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 80POS 0.031 / 80 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series MEC8 - DV
Package Tray
Product Status Active
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 80
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Hairpin Bellows
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC8-140
Standard Package 52 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 884525-MEC8-140-02-L-DV
Ultra Librarian 3D Model Ultra Librarian MEC8-140-02-L-DV CAD Model

Description

The MEC8-140-02-L-DV is an edgeboard connector from the MEC8 - DV series.

  • Positions: 80
  • Pitch: 0.031" (0.80mm)
  • Application: Card Edge
  • Color: Black
  • Contacts: Hairpin Bellows
  • Termination: Solder
  • Finish: Gold
  • Insulation: Liquid Crystal Polymer (LCP)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: Active
  • Manufacturer: Samtec Inc.
