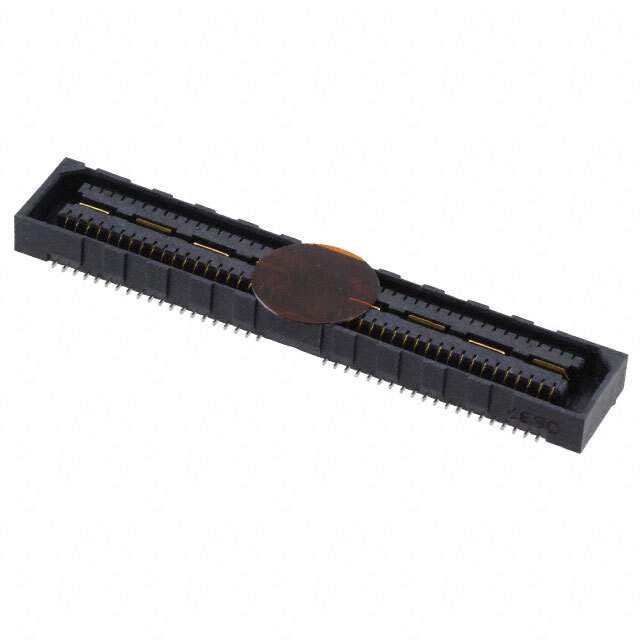

The QSE-040-01-L-D-A-K-TR is a high-density, high-speed edge card socket from Samtec Inc. It is designed for robust and reliable connections in demanding applications. This connector offers excellent signal integrity and mechanical durability.

Applications

• High-speed networking equipment
• Telecommunications infrastructure
• Data center equipment
• Servers and storage systems
• Medical imaging devices
• Industrial automation

Features

• High-Density Design: Allows for a large number of connections in a compact space.
• High-Speed Performance: Optimized for signals up to 28 Gbps.
• Edge Card Socket: Designed to mate with standard edge cards.
• Robust Construction: Ensures reliable performance in harsh environments.
• Surface Mount Technology (SMT): Enables automated assembly for high-volume manufacturing.
• Multiple Polarization Options: Prevents mismating.
• Audible click: Provides an audible confirmation of successful mating.

Benefits

• Increased System Density: Allows for more functionality in a smaller footprint.
• Improved Signal Integrity: Ensures reliable data transmission at high speeds.
• Reduced Manufacturing Costs: SMT compatibility streamlines the assembly process.
• Enhanced Reliability: Robust construction minimizes downtime and maintenance.
• Flexibility in Design: Multiple options to fit various application needs.

Additional Details

This Samtec QSE series connector has 40 contacts per row. The insulator material is liquid crystal polymer (LCP), which provides excellent electrical and mechanical properties. The contact material is beryllium copper, ensuring high conductivity and durability. The termination style is surface mount. It's packaged in tape and reel for automated assembly processes.
