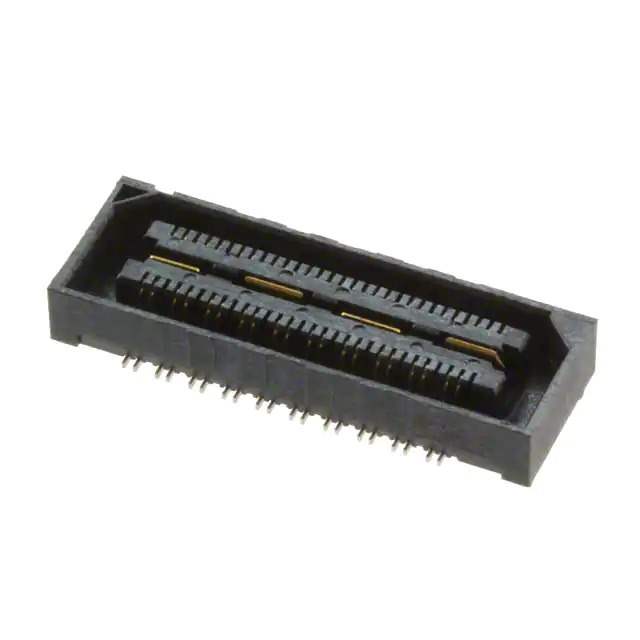

QSH-020-01-L-D-DP-A-K-TR

Name: QSH-020-01-L-D-DP-A-K-TR
Brand: Samtec Inc.
SKU: 851272
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QSH-020-01-L-D-DP-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN DIFF ARRAY RCP 40P SMD GOLD / 40 Position Connector Differential Pair Array, Female Surface Mount Gold
Datasheet	QSH-020-01-L-D-DP-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSH
Package	Tape & Reel
Product Status	Active
Connector Type	Differential Pair Array, Female
Number of Positions	40
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-020
Standard Package	475 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	851272-QSH-020-01-L-D-DP-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian QSH-020-01-L-D-DP-A-K-TR CAD Model

Alternative Products

Description

The Q Strip™ QSH series is a high-performance range of edge type connectors designed for mezzanine applications.

Connector: QSH 851272-QSH-020-01-L-D-DP-A-K-TR
Type: Differential Pair Array
Positions: 40
Rows: 2
Pick and Place: Yes
Height Above Board: 0.128" (3.25mm)
Contact Finish: Gold
Gold Thickness: 10.0µin (0.25µm)
Package: Tape & Reel
Pieces Per Package: 475
