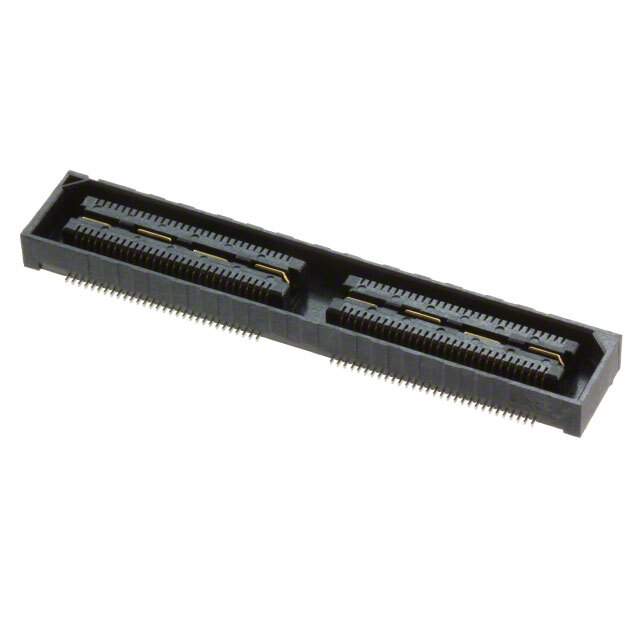

QSH-060-01-F-D-A

Name: QSH-060-01-F-D-A
Brand: Samtec Inc.
SKU: 1086952
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QSH-060-01-F-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	QSH-060-01-F-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSH
Package	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	3.00µin (0.076µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-060
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	QSH-060-01-F-D-A-NDL,Q5396740AI,SAM8844,QSH-060-01-F-D-A-ND
Standard Package	64
Win Source Part Number	1086952-QSH-060-01-F-D-A
Ultra Librarian 3D Model	Ultra Librarian QSH-060-01-F-D-A CAD Model

Alternative Products

Description

The Samtec Inc. 1086952-QSH-060-01-F-D-A is a rectangular connector with arrays, edge type, mezzanine (board to board).

Positions: 120
Pitch: 0.020 inches
Connector Type: Receptacle, center strip contacts
Rows: 2
Contact Finish: Gold with a thickness of 3.00µin (0.076µm)
Package: Trays
Standard Package: 64 connectors
Mounting Style: SMD (SMT)
Height above board: 0.128 inches (3.25mm)
MSL Level: 1 (Unlimited)
REACH: Unaffected
HTSUS: 8536.69.4040
