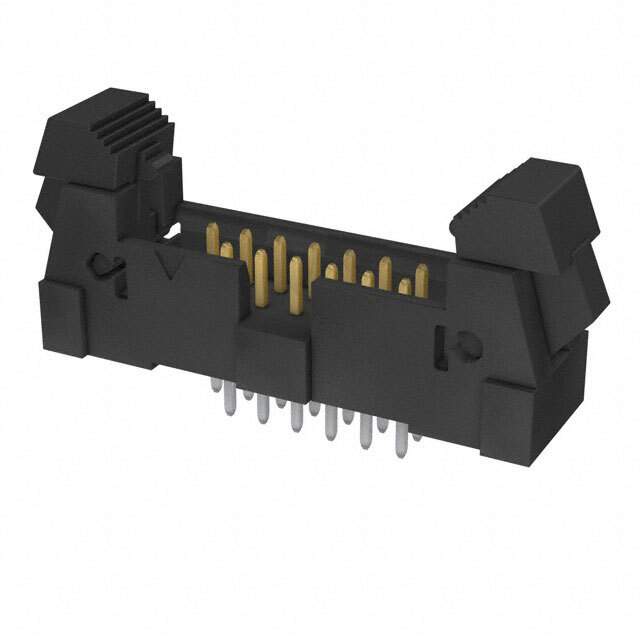

The EHT-107-01-S-D-01 is a rectangular connector header from the EHT series from Samtec Inc.

• Series: EHT
• Number of Positions: 14
• Keying Slot: Yes
• Contact Type: Male Pin
• Number of Positions Loaded: 13
• Number of Rows: 2
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks
• Package: Tube
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Cable/Wire
• Pitch-Mating: 0.079" (2.00mm)
• Contact Finish-Mating: Gold, thickness of 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Mounting Type: Through-Hole
• Shrouding: Shrouded - 4 Wall
• Row Spacing-Mating: 0.079" (2.00mm)
• Contact Length-Post: 0.114" (2.90mm)
• Insulation Height: 0.370" (9.40mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• Contact Length-Mating: 0.120" (3.05mm)
• MSL Level: Not Applicable
• Current Rating (Amps): 3A
• REACH Status: Unaffected
• HTSUS Code: 8536.69.4040
• Base Product Number: EHT-107
• California Prop 65 Warning: Yes
