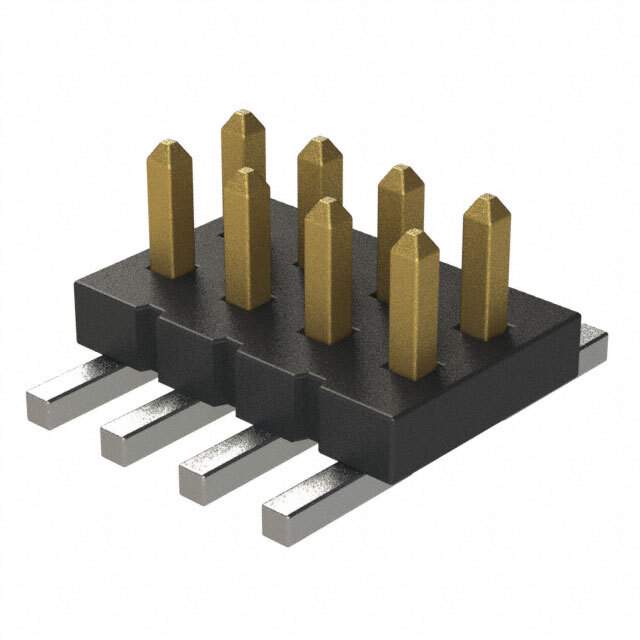

Same model may have multiple batches, images only for reference.

FTS-104-03-F-DV-TR

Name: FTS-104-03-F-DV-TR
Brand: Samtec Inc.
SKU: 1350694
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTS-104-03-F-DV-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 1.27MM / Connector Header Surface Mount 8 position 0.050" (1.27mm)
Datasheet	FTS-104-03-F-DV-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTS
Package	Tape & Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTS-104
Standard Package	1,325
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1350694-FTS-104-03-F-DV-TR
Ultra Librarian 3D Model	Ultra Librarian FTS-104-03-F-DV-TR CAD Model

Alternative Products

Description

The FTS-104-03-F-DV-TR is a board-to-board or cable male pin header connector from Samtec Inc.

Manufacturer: Samtec Inc.
Series: FTS
Connector Type: Header, Male Pin
Number of Positions: 8
Number of Rows: 2
Cuttable: Yes
Fastening Type: Push-Pull
Pitch: 0.050” (1.27mm)
Row Spacing: 0.050” (1.27mm)
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Current Rating: 3.4A per contact
Operating Temperature: -55°C to 125°C
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Insulation Height: 0.034” (0.86mm)
Color: Black
REACH Status: REACH Unaffected
ECCN: EAR99
