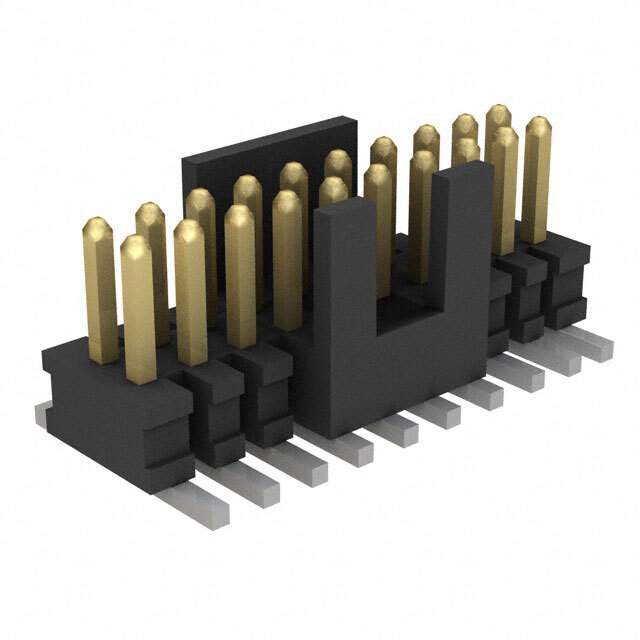

Same model may have multiple batches, images only for reference.

FTSH-110-01-F-DV-K

Name: FTSH-110-01-F-DV-K
Brand: Samtec Inc.
SKU: 1332514
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-110-01-F-DV-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	FTSH-110-01-F-DV-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Shroud
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-110
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	FTSH-110-01-F-DV-K-ND,SAM8802
Standard Package	46
Win Source Part Number	1332514-FTSH-110-01-F-DV-K
Ultra Librarian 3D Model	Ultra Librarian FTSH-110-01-F-DV-K CAD Model

Alternative Products

Description

The FTSH-110-01-F-DV-K is a 20-position rectangular connector designed by Samtec Inc.

Pitch: 1.27mm
Applications: board-to-board or cable
Voltage Rating: N/A
Contact Material: phosphor bronze
Termination: solder
Fastening Type: push-pull
Temperature Range: -55°C to 125°C
Package: tube
Standard Package: 46
