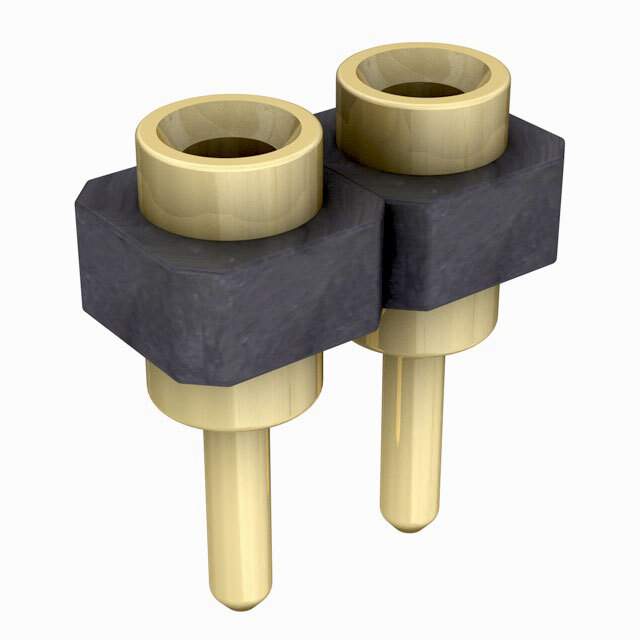

SDL-101-G-10 Real Image
Same model may have multiple batches, images only for reference.

SDL-101-G-10

Part No SDL-101-G-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-101-G-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 2
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-101
Other Names SAM1133-01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293008-SDL-101-G-10
Ultra Librarian 3D Model Ultra Librarian SDL-101-G-10 CAD Model

Description

The SDL series female socket connector is a push-pull type rectangular connector that features a circular contact shape.

  • Rows: 2-row
  • Positions: 2-position
  • Positions Loaded: All positions
  • Mounting Type: Through-hole
  • Termination: Solder
  • Contact Material: Beryllium copper
  • Insulation Material: Liquid crystal polymer (LCP)
  • Temperature Range: -55°C to 125°C
  • Insulation Color: Black
  • Insulation Height: 0.122” (3.10mm)
  • Contact Finish (Mating): Gold with a thickness of 10.0μin (0.25μm)
  • Application: Board-to-board
