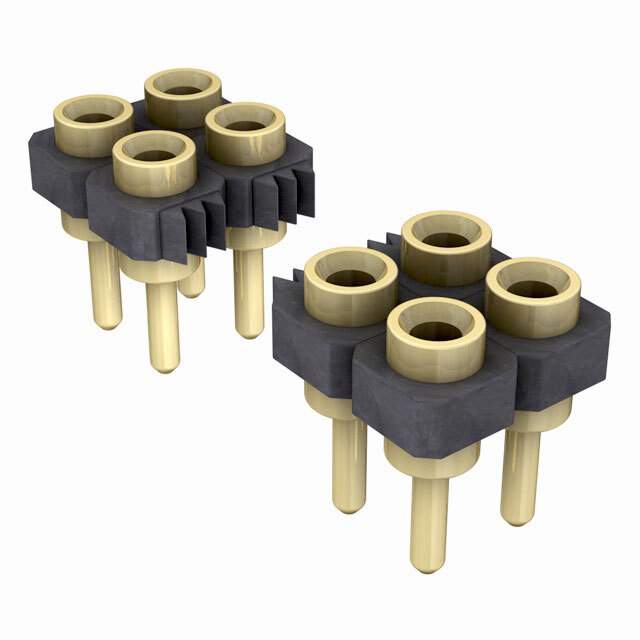

The SDL-109-G-10 is a terminal strip from Samtec Inc., designed for reliable board-to-board connections, especially in applications requiring a low-profile design. Belonging to the SDL series, this component offers a durable and efficient solution for various electronic applications.

Applications

• Consumer Electronics: Used in devices like laptops, tablets, and smartphones where space is limited.
• Portable Devices: Employed in portable medical devices, handheld instruments, and wearable technology.
• Compact Industrial Equipment: Found in small-sized industrial controllers and sensors.
• LED Lighting: Utilized in LED modules and lighting control systems where low-profile connections are needed.
• Data Acquisition: Integrated into compact data loggers and sensor interface modules.

Features

• Number of Rows: Single row configuration for a compact design.
• Number of Positions: 9 positions, providing multiple connection points in a small form factor.
• Pitch: Standard 0.100" (2.54mm) pitch, ensuring compatibility with standard PCBs and components.
• Termination Style: Through-hole termination for secure and robust mounting on PCBs.
• Insulator Material: High-temperature thermoplastic, offering excellent insulation properties and resistance to soldering temperatures.
• Contact Material: Phosphor bronze or beryllium copper, providing good conductivity and durability.
• Contact Plating: Gold or tin plating on the contact area, ensuring reliable electrical contact and corrosion resistance.
• Profile: Low-profile design for space-constrained applications.

Benefits

• Space-Saving: Low-profile design allows for use in compact and miniaturized devices.
• Reliable Connection: Provides a secure and stable electrical connection, minimizing signal loss.
• Durable Construction: Constructed with high-quality materials, ensuring long-term reliability.
• Easy Installation: Through-hole termination simplifies the soldering process.
• Versatile Application: Suitable for a wide range of applications due to its compact size and reliable performance.

Additional Details

The SDL-109-G-10 terminal strip is designed for ease of use and reliability in space-constrained applications. Its through-hole termination ensures a strong mechanical connection to the PCB. The high-temperature thermoplastic insulator allows for reflow soldering without deformation. The gold or tin plating on the contacts ensures optimal electrical performance. The low-profile design makes it an excellent choice for applications where height is a critical factor.
