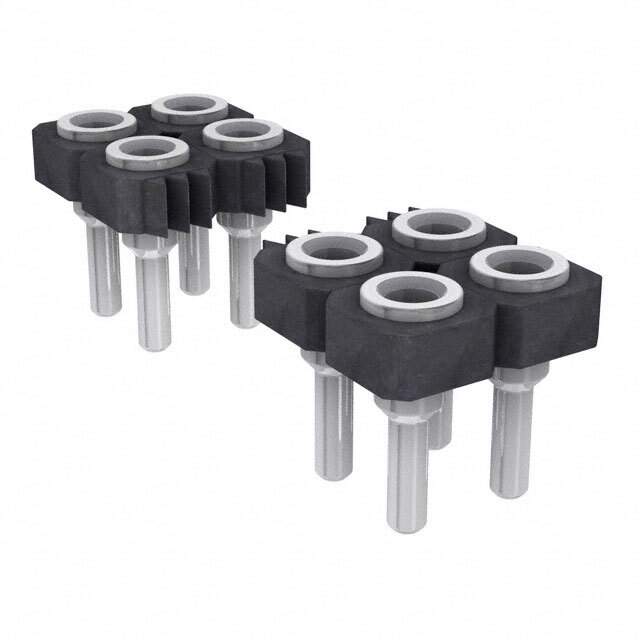

Same model may have multiple batches, images only for reference.

SDL-124-TT-12

Name: SDL-124-TT-12
Brand: Samtec Inc.
SKU: 1292948
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SDL-124-TT-12
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-124-TT-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	48
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-124
Other Names	SAM1141-24
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292948-SDL-124-TT-12
Ultra Librarian 3D Model	Ultra Librarian SDL-124-TT-12 CAD Model

Alternative Products

Description

The SDL series female socket connector is a high-performance board-to-board connector designed for use in electronic devices.

Manufacturer: Samtec Inc.
Shape: Rectangular
Number of Positions: 48
Number of Rows: Two
Mounting: Designed to be soldered onto a printed circuit board
Fastening Type: Push-pull
Contact Material: Beryllium copper
Temperature Range: -55°C to 105°C
Insulation Material: Liquid crystal polymer (LCP)
Contact Finish: Tin
RoHS Compliant: Yes
REACH Unaffected: Yes
Package: Tube
