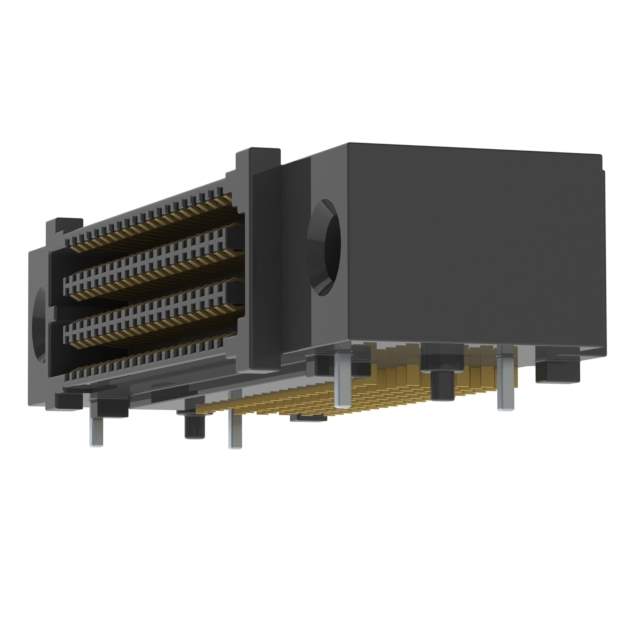

SEAF-20-01-S-06-2-RA-GP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-01-S-06-2-RA-GP-TR

Part No SEAF-20-01-S-06-2-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-01-S-06-2-RA-GP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.411" (10.45mm)
Base Product Number SEAF-20
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293748-SEAF-20-01-S-06-2-RA-GP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-20-01-S-06-2-RA-GP-TR CAD Model

Description

The Samtec Inc. SEAF-20-01-S-06-2-RA-GP-TR is a high-density array, female type connector with a number of positions of 120.

  • Pitch: 0.050" (1.27mm)
  • Features: Board guide and mating flange
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tape and reel
  • Mounting Type: Surface mount, right-angle
  • MSL Level: Unlimited
  • ECCN: EAR99
