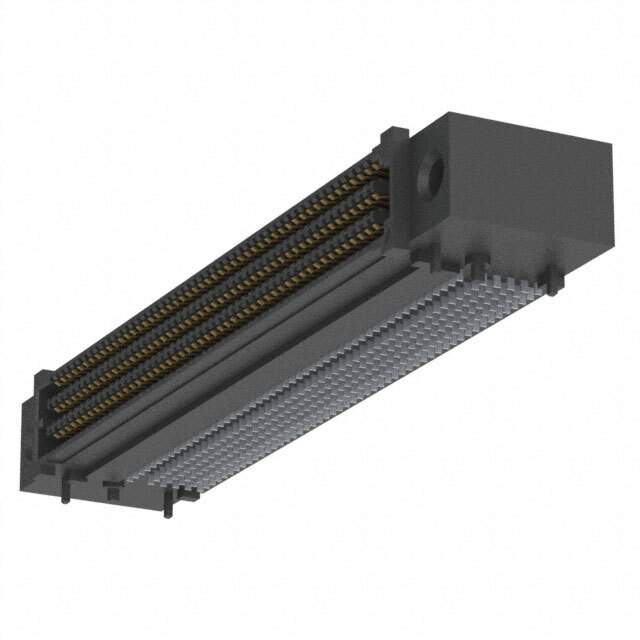

Same model may have multiple batches, images only for reference.

SEAF-50-01-L-06-1-RA-GP-K-TR

Name: SEAF-50-01-L-06-1-RA-GP-K-TR
Brand: Samtec Inc.
SKU: 1293627
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-50-01-L-06-1-RA-GP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-01-L-06-1-RA-GP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	300
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Mating Flange, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.411" (10.45mm)
Base Product Number	SEAF-50
Standard Package	125
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293627-SEAF-50-01-L-06-1-RA-GP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-01-L-06-1-RA-GP-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series connector is a high-density array connector that is perfect for use in mezzanine (board-to-board) applications.

Contacts: 300
Rows: 6
Application: applications where space is at a premium
Features: mating flange and a pick-and-place feature
Temperature Range: -55°C to 125°C
Contact Finish: gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: tape and reel (TR)
Mounting: surface mount, right-angle mounting
Height Above Board: 0.411" (10.45mm)
