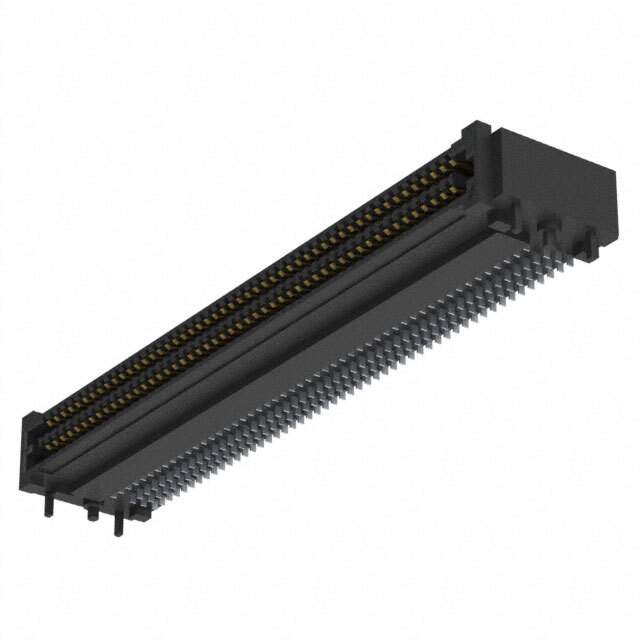

SEAF-50-01-S-04-2-RA-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-01-S-04-2-RA-TR

Part No SEAF-50-01-S-04-2-RA-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-01-S-04-2-RA-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 200
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting Type Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.311" (7.90mm)
Base Product Number SEAF-50
Standard Package 225
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293696-SEAF-50-01-S-04-2-RA-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-01-S-04-2-RA-TR CAD Model

Description

The SEAF-50-01-S-04-2-RA-TR is a rectangular connector from Samtec Inc.

  • Connector Type: High-Density Array, Female
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Package: Tape and Reel
  • Height Above Board: 0.311" (7.90mm)
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -55°C to 125°C
