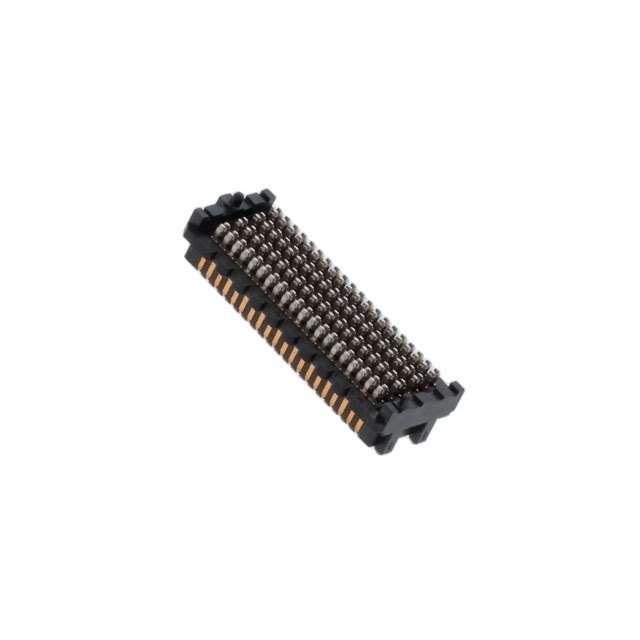

SEAM-20-03.5-L-08-2-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAM-20-03.5-L-08-2-A-K-TR

Part No SEAM-20-03.5-L-08-2-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAM-20-03.5-L-08-2-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAM
Package Tape & Reel
Connector Type High Density Array, Male
Number of Positions 160
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 8.5mm, 9.5mm, 10mm, 11mm
Height Above Board 0.240" (6.10mm)
Base Product Number SEAM-20
Other Names SEAM-20-03.5-L-08-2-A-K-TR,SAM14396TR,SAM14396CT,SAM14396DKR
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293515-SEAM-20-03.5-L-08-2-A-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAM-20-03.5-L-08-2-A-K-TR CAD Model

Description

The SEAM-20-03.5-L-08-2-A-K-TR is a rectangular connector array manufactured by Samtec Inc.

  • Type: High-density array, male connector
  • Positions: 160
  • Pitch: 0.050” (1.27mm)
  • Board Guide: Yes
  • Pick and Place: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: Tape and reel
  • Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 11mm
  • Height Above Board: 0.240” (6.10mm)
  • Standard Package: 200
  • Mounting: SMD (SMT)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
