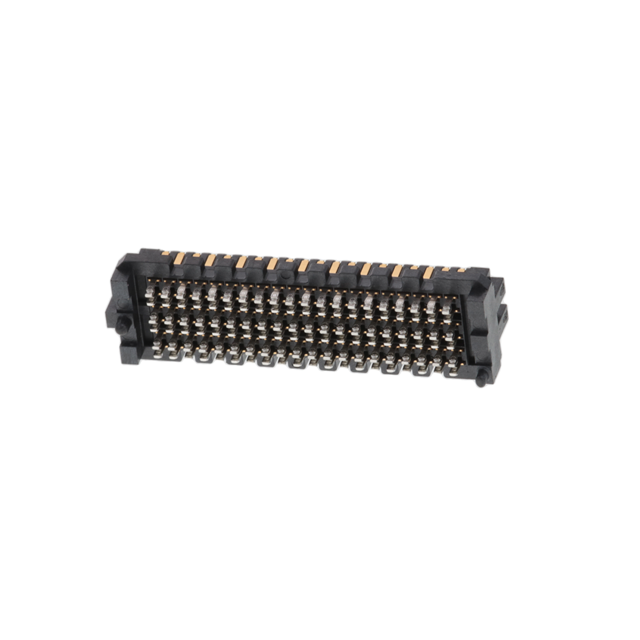

SEAM-20-03.5-S-06-2-A-K-TR

Name: SEAM-20-03.5-S-06-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293516
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAM-20-03.5-S-06-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM-20-03.5-S-06-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tape & Reel
Connector Type	High Density Array, Male
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 11mm
Height Above Board	0.240" (6.10mm)
Base Product Number	SEAM-20
Other Names	SAM14397CT,SEAM-20-03.5-S-06-2-A-K-TR,SAM14397TR,SAM14397DKR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293516-SEAM-20-03.5-S-06-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAM-20-03.5-S-06-2-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAM series of high-density array male connectors from Samtec Inc. are designed for use in board-to-board mezzanine applications.

Pitch: 0.050 inches (1.27mm)
Board Guide: Yes
Pick-and-Place: Yes
Rows: Six
Positions: 120
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Packaging: Tape and Reel
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, and 11mm
Height Above Board: 0.240 inches (6.10mm)
Mounting: Surface-Mount Technology (SMT)
ECCN: EAR99
REACH: Unaffected
Standard Package: 200
