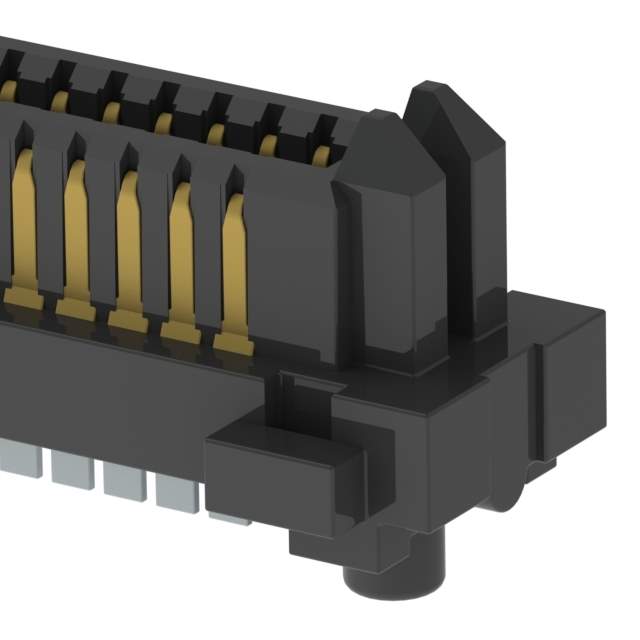

Same model may have multiple batches, images only for reference.

SEAM8-50-S02.0-L-04-3

Name: SEAM8-50-S02.0-L-04-3
Brand: Samtec Inc.
SKU: 1341221
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAM8-50-S02.0-L-04-3
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN TERMINAL HS HD ARRAY / 200 Position Connector High Density Array, Male Surface Mount Gold
Datasheet	SEAM8-50-S02.0-L-04-3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Strip
Connector Type	High Density Array, Male
Number of Positions	200
Pitch	0.031" (0.80mm)
Number of Rows	4
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	100.0µin (2.54µm)
Mated Stacking Heights	7mm
Height Above Board	0.179" (4.55mm)
Base Product Number	SEAM8-50
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341221-SEAM8-50-S02.0-L-04-3
Ultra Librarian 3D Model	Ultra Librarian SEAM8-50-S02.0-L-04-3 CAD Model

Alternative Products

Description

The SEAM8-50-S02.0-L-04-3 model from Samtec Inc. is a rectangular connector used in arrays, edge type, and mezzanine (board to board) applications.

Connector Type: High Density Array, Male
Series: SEARAY™ SEAM
Number of Positions: 200
Pitch: 0.031" (0.80mm)
Number of Rows: 4
Mounting Type: Surface Mount
Height Above Board: 0.179" (4.55mm)
Mated Stacking Height: 7mm
Features: Board Guide
Contact Finish: Gold
Contact Finish Thickness: 100.0μin (2.54μm)
Package Type: Strip
Standard Package: 1
ECCN: EAR99
HTSUS: 8536.69.4040
