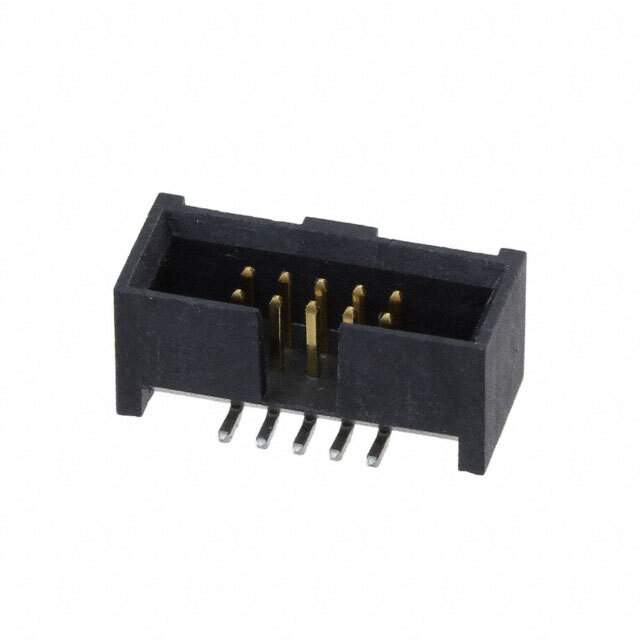

SHF-105-01-S-D-SM Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-S-D-SM

Part No SHF-105-01-S-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-105-01-S-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Other Names SAM11770,SHF-105-01-S-D-SM
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293149-SHF-105-01-S-D-SM
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-S-D-SM CAD Model

Description

The SHF series header connector from Samtec Inc. is a high-quality rectangular connector that is perfect for use in a variety of applications.

  • Feature: Keying Slot
  • Shrouding: Shrouded 4-Wall
  • Contact Type: Male Pins
  • Positions Loaded: All 10 positions
  • Rows: Two
  • Termination: Solder
  • Current Rating: 3A
  • Temperature Range: -55°C to 125°C
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Mounting: SMD (SMT)
  • Package: Tube
  • Material Flammability Rating: UL94 V-0
