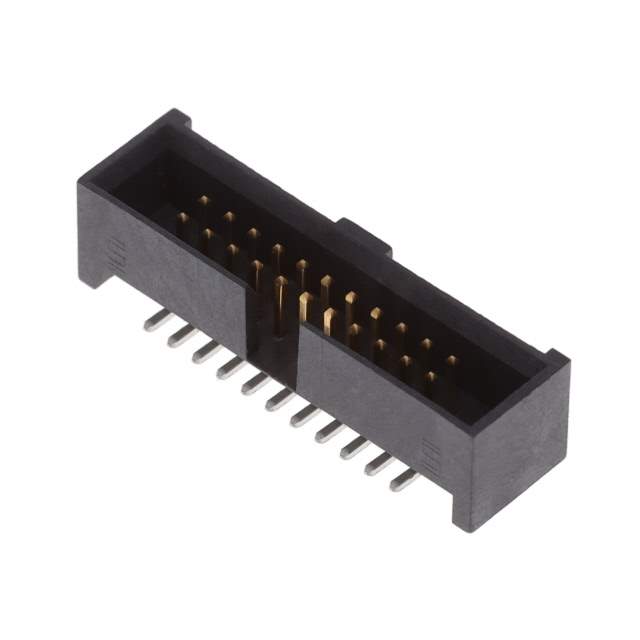

SHF-111-01-L-D-SM

Name: SHF-111-01-L-D-SM
Brand: Samtec Inc.
SKU: 1293137
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SHF-111-01-L-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SHF-111-01-L-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-111
Standard Package	28
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293137-SHF-111-01-L-D-SM
Ultra Librarian 3D Model	Ultra Librarian SHF-111-01-L-D-SM CAD Model

Alternative Products

Description

The SHF series male pin header connector from Samtec Inc. is a board-to-cable/wire connector with 22 positions and a pitch of 0.050" (1.27mm).

Positions: 22
Pitch: 0.050" (1.27mm)
Insulation Material: Black Liquid Crystal Polymer (LCP)
Height: 0.210" (5.33mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold
Temperature Range: -55°C ~ 125°C
Termination: Solder
Contact Type: Male Pin
Fastening Type: Push-Pull
Application: Board-to-Cable/Wire
Packaging: Tube
Flammability Rating: UL94 V-0
