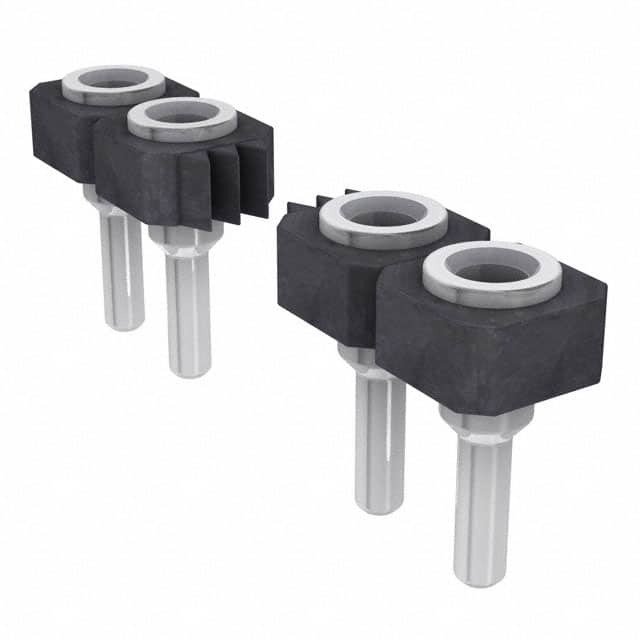

Same model may have multiple batches, images only for reference.

SL-130-TT-12

Name: SL-130-TT-12
Brand: Samtec Inc.
SKU: 1292740
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SL-130-TT-12
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SL-130-TT-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SL-130
Other Names	SAM1110-30
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292740-SL-130-TT-12
Ultra Librarian 3D Model	Ultra Librarian SL-130-TT-12 CAD Model

Alternative Products

Description

This rectangular connector from Samtec Inc. is part of the SL series, with a part number of 1292740-SL-130-TT-12.

Series: SL
Part Number: 1292740-SL-130-TT-12
Positions: 30
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: One
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Style: Board to Board
Pitch for Mating: 0.100" (2.54mm)
Contact Finish: Tin
Insulation Color: Black
Mounting Type: Through-Hole
Contact Length: 0.095" (2.41mm)
Insulation Height: 0.095" (2.41mm)
Contact Shape: Circular
Temperature Range for Operating: -55°C to 105°C
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
