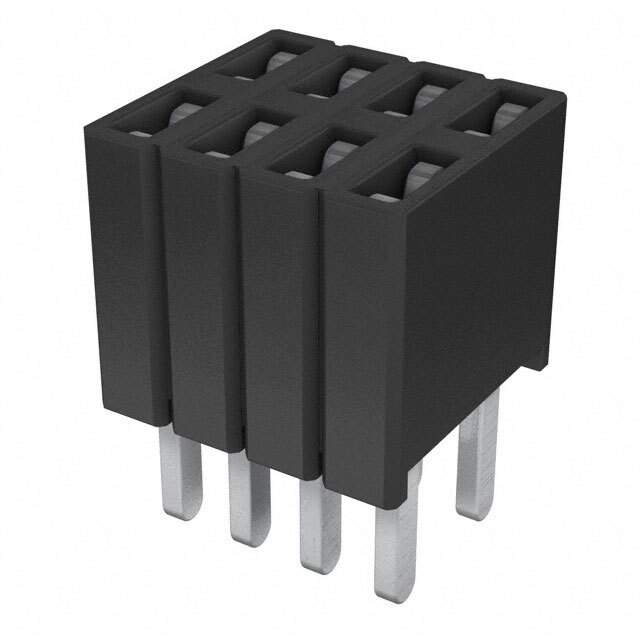

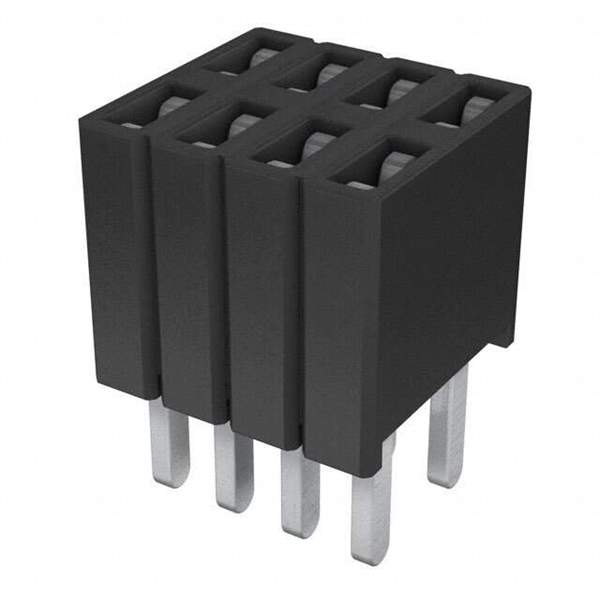

Same model may have multiple batches, images only for reference.

SLM-104-01-S-D

Name: SLM-104-01-S-D
Brand: Samtec Inc.
SKU: 1292695
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLM-104-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLM-104-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Base Product Number	SLM-104
Other Names	SAM11787,SLM-104-01-S-D
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292695-SLM-104-01-S-D
Ultra Librarian 3D Model	Ultra Librarian SLM-104-01-S-D CAD Model

Alternative Products

Description

The Samtec Inc. SLM-104-01-S-D is a male pin connector header with a rectangular shape.

Positions Loaded: 8 positions loaded
Rows: 2 rows
Cuttable: Yes
Contact Type: Forked
Fastening Type: Push-pull
Contact Material: Phosphor bronze
Contact Finish: Gold
Voltage Rating: -
Temperature Range: -55°C to 125°C
