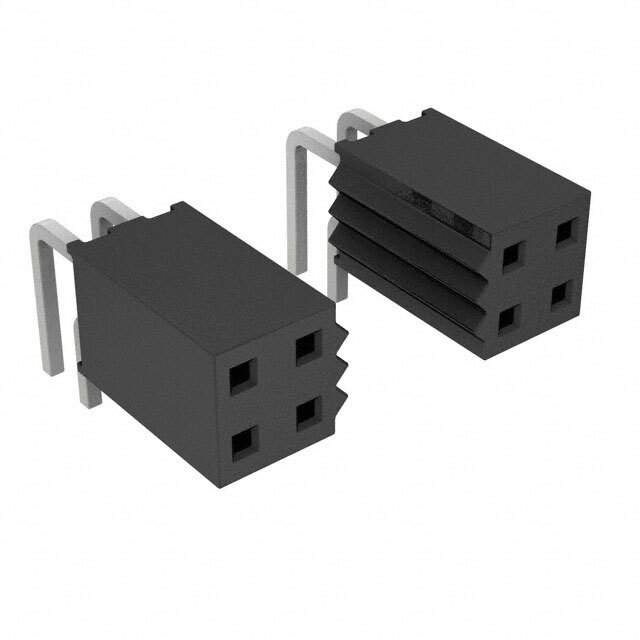

SQT-115-01-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

SQT-115-01-L-D-RA

Part No SQT-115-01-L-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQT-115-01-L-D-RA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-115
Other Names SAM1246-15
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292438-SQT-115-01-L-D-RA
Ultra Librarian 3D Model Ultra Librarian SQT-115-01-L-D-RA CAD Model

Description

The Samtec Inc. SQT-115-01-L-D-RA is a rectangular connector that is designed to be used in a variety of applications.

  • Positions: 30
  • Positions Loaded: All
  • Pitch: 0.079"
  • Mounting: Through hole, right angle
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 10.0µin (0.25µm)
  • Contact Finish for the Post: Tin
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5.1A per contact
