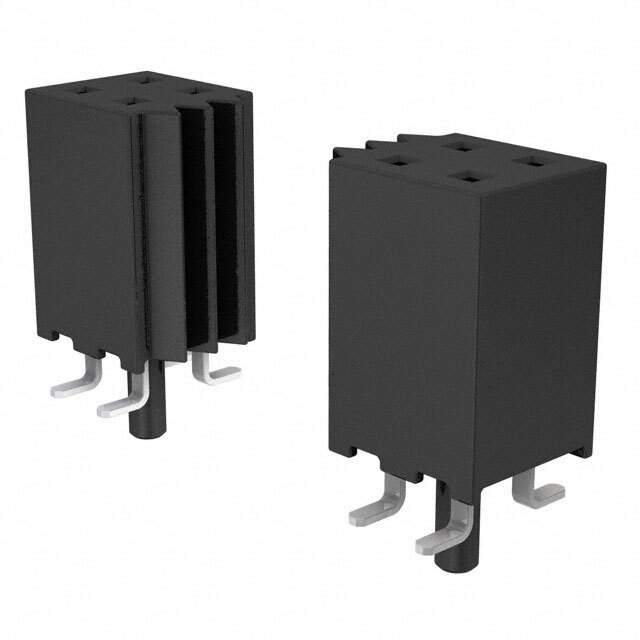

The SQW-120-01-L-D-VS-A is a receptacle connector designed for board to board or cable applications.

• Series: SQW
• Positions: 40
• Rows: Two
• Contact Type: Forked
• Board Guide: Yes
• Fastening Type: Push-pull
• Contact Material: Phosphor bronze
• Contact Finish: Gold with a thickness of 10.0µin (0.25µm) for mating and tin for post
• Insulation Material: Liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Pitch: 0.079” (2.00mm) for mating
• Row Spacing: 0.079” (2.00mm)
• Contact Shape: Square
• Insulation Height: 0.300” (7.62mm)
• Operating Temperature Range: -55°C to 125°C
