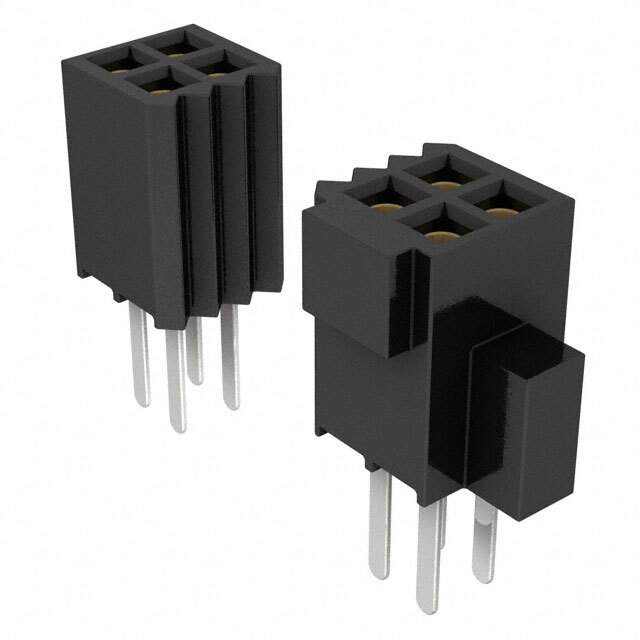

SFM-140-03-S-D Real Image
Same model may have multiple batches, images only for reference.

SFM-140-03-S-D

Part No SFM-140-03-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 80POS 0.05 GOLD PCB / 80 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet
SFM-140-03-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 80
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.075" (1.91mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 10
Win Source Part Number 1092403-SFM-140-03-S-D
Ultra Librarian 3D Model Ultra Librarian SFM-140-03-S-D CAD Model

Description

The Tiger Eye™ SFM series rectangular connector, with a part number of 1092403-SFM-140-03-S-D, is a beryllium copper female socket connector with a receptacle connector type.

  • Series: Tiger Eye™ SFM
  • Part Number: 1092403-SFM-140-03-S-D
  • Contact Material: Beryllium Copper
  • Connector Type: Female Socket, Receptacle
  • Positions: 80
  • Rows: 2
  • Applications: Board to Board or Cable
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Pitch - Mating: 0.050" (1.27mm)
  • Package: Tube
  • Voltage Rating: 250VAC
  • Current Rating (Amps): 3.2A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Category: Rectangular Connectors - Headers, Receptacles, Female Sockets
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
  • Base Product Number: SFM-140
